MF4710

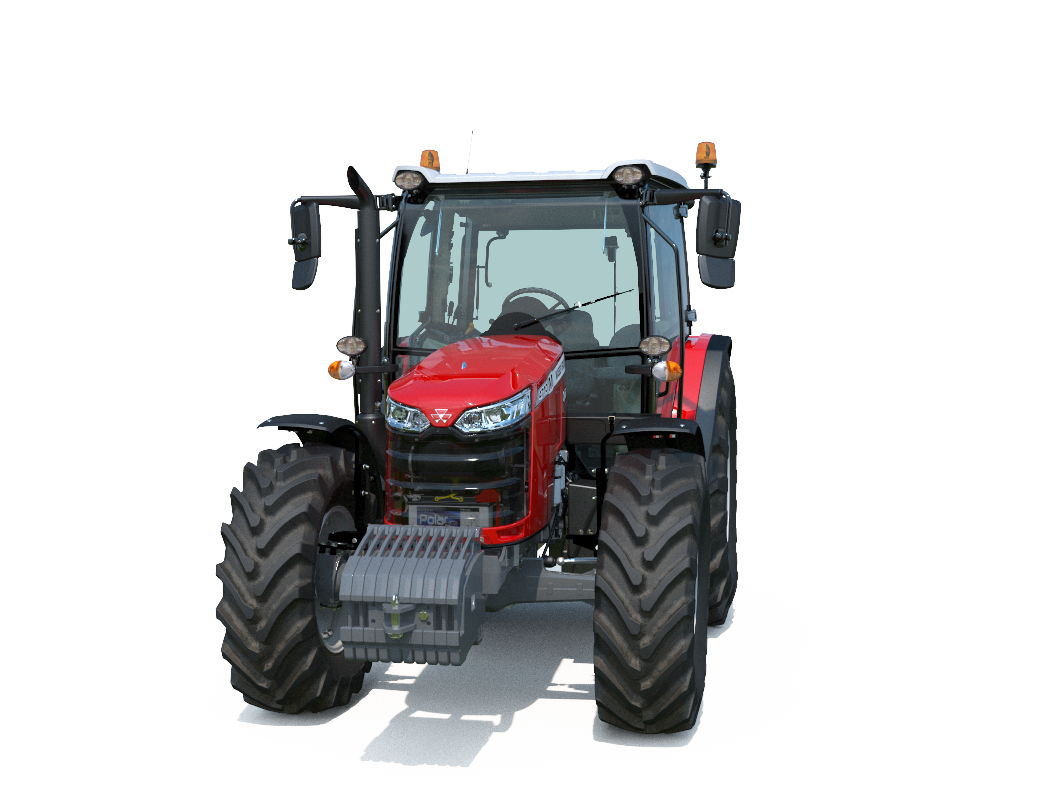

MF4710 Image

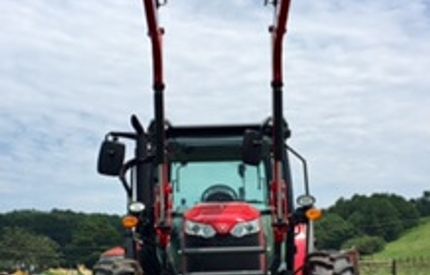

MF4710 Image
MF4710

Overview

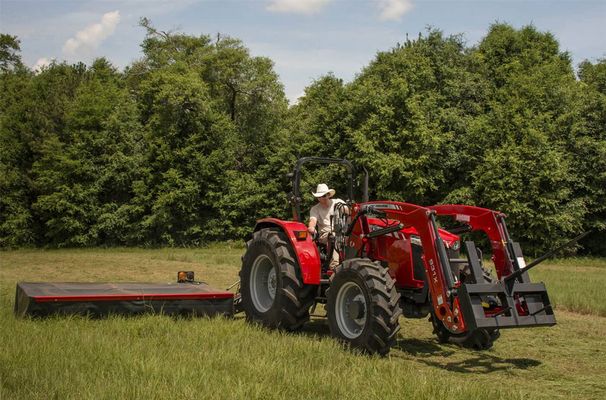

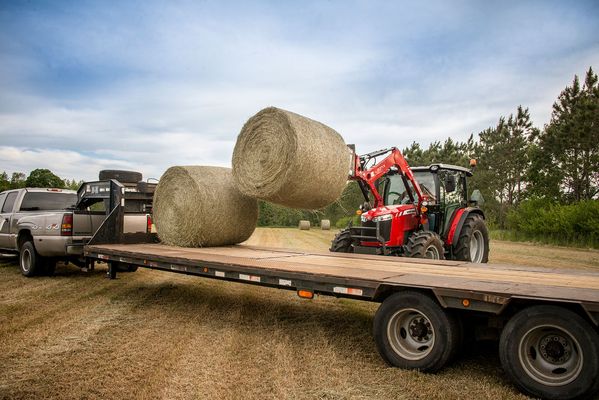

The Massey Ferguson 4710 is heavier than other tractors in its class, uniquely designed to handle larger, heavier implements and more demanding applications. With a wide range of wheel-spacing settings, these tractors are versatile enough to handle everything from specialty farming applications like small-scale row crops and vegetables, hay & forage, small farms and orchards, to roadside mowing and land management applications.

Features:

Powerful And Quiet – The 4710 Massey Ferguson turbo-charged diesel power plant delivers maximum torque at low engine speeds. You not only get clean exhaust and miserly fuel consumption, but both noise and tractor wear and tear are reduced. You enjoy an unmatched operator experience and a very comfortable cost of operation.

Smooth Running – Four valves per cylinder improve airflow and enhance the fuel/air mixture, so you run cool and smooth, keeping service costs low, too.

No DPF Filter – These tractors don’t require a diesel particulate filter (DPF), which also saves money, time and fuel.

All The Speeds You Need – The 12×12 synchronized shuttle transmission provides 12 forward and 12 reverse speeds in two ranges. With six gears within the typical 2.5-7.5 MPH fieldwork range, and a maximum speed of 25 MPH, you always have the right speed for any job.

Heavy Duty – At a best-in-class base weight of 7,125 lbs., the 4700 Series is purpose-built for more pulling power and more lift capacity. Not to mention better maneuverability and more stability.

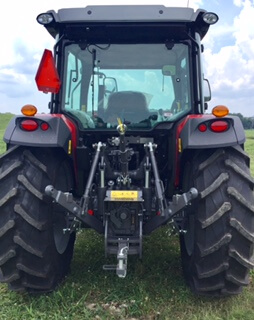

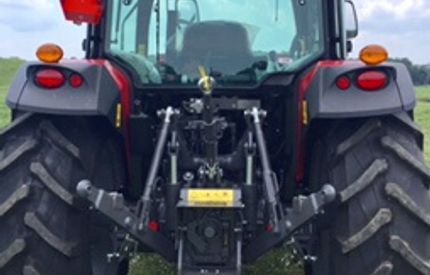

No Hitch Like This Hitch – There’s virtually no limit to the range of implements you can put behind these tractors. Two gear pumps power the simple, open-center hydraulic system, and a heavy-duty three-point hitch helps provide a rear lifting capacity of nearly 4,850 lbs.

Cart
Call to order:
229-759-2484
Massey Ferguson 4710 Specs
EngineAGCO Power 3.3L 3-cyl diesel
Engine HP100 hp
Fuel Capacity27.7 gal [104.8 L]
4×4 MFWD 4WD
PTO HP88 hp
Rear PTOindependent
Rear RPM540/1000
3-Point HitchRear Type II
Rear lift (at 24?)4850 lbs
Clutchelectro-hydraulic wet disc
Final drivesplanetary
Differential lockelectro-hydraulic rear
Brakeswet disc
CabTwo-post folding ROPS. Cab optional with air-conditioning.
Wheelbase88.5 inches [224 cm]
Weight7478 to 8644 pounds
Hydraulics Typeopen center
Valves1 to 3
SCV flow17.2 gpm [65.1 lpm]
