4707 Massey Ferguson Specs

ENGINE SYSTEM
• AGCO Power 33AWIC 3 Cylinder (Turbocharged) with SCR and DOC EPA Tier 4 Final and CARB Certified
• Air Cleaner: Dual Element Dry Type
• Air Cleaner Intake, Under Hood
• Vertical Exhaust
• Cooling System: Antifreeze 50/50 Mix
• Cold Starting Aid: In take Heater

HORSEPOWER
(MaxEngine @ 2000 RPM; Rated Engine & PTO @ 2200 RPM)
MF4707 Deluxe Powershuttle:
75 Max Engine HP, 70 Engine HP, 57 PTO HP

FRONT AXLE
• 2wd: Adjust able
• 4wd: Center Driveline, Open Differential, Standard Limited Slip Differential

POWERTRAIN
• Transmission:
MF4707- 8 X 8 Synchro Mechanical Shuttle with Left Hand Shuttle Lever, 4 Synchronized Gears, 2 Ranges
• Rear Axle: In board Planetary Final Drives, with Push Button Operated Mechanical Differential Lock, Flanged Rear Axle
• Brakes: Independent Oil Immersed Wet Disc Brakes with Independent Foot Pedal Operation
• Hook and Lever Parking Brake
• PTO: In dependent 540/1000 RPM Dual Speed with 6 & 21 Spline Flanged Shafts (1.375 In. Diameter), Independent Wet Disc Clutch, Electro-hydraulic Engagement

HYDRAULIC SYSTEM
• 1 Mechanically Controlled Spool Valve
• Implement System:
Open Center System, Engine Driven Gear Pump
17.1 GPM Flow
• Rear Linkage:
ASAE Category II with Telescopic Ball Ends
Lift Capacity at 24?: 4850 LBS (2200 KG)
Single Adjustable Rear Linkage Turnbuckle, Top Link Draft Sensing
Standard Chain Link Stabilizers
• Swing Straight Drawbar with 350/400/500mm Positions, Cat 2 Clevis

ELECTRICAL
• 12 Volt DC, Negative Ground
• In take Air Pre Heater
• Wet, Maintenance Free SAE 775 CCA Battery
• 80 AMP Alternator
• Ignition: Key with Safety Start
• Keyed Engine Shut off
• Lighting: 4 Head lights, 2 Rear Marker Light Assemblies
• Rear Brake Lights
• Standard 1 Rear Work Light
• 7 Pin ASAE Outlet Socket

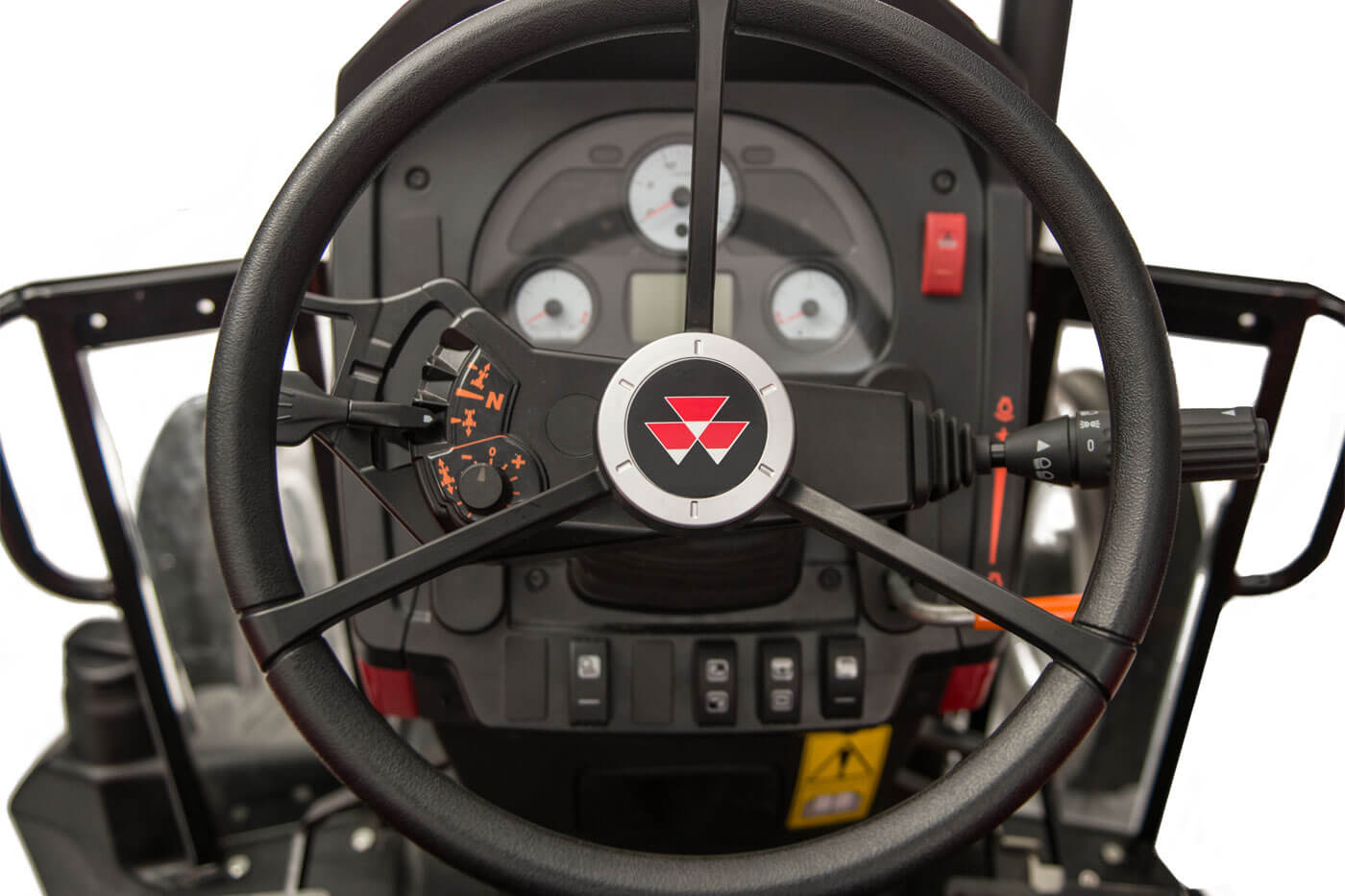

INSTRUMENTS
• Digital and Analog Dash Display
• Analog Engine Tachometer
• Analog Fuel Gauge
• Analog Engine Temperature
• Digital Transmission Display
• Digital Hour Meter
• Operation and Service Lights

OPERATOR ENVIRONMENT (CAB MODELS)
• Standard Cab Roof
• HVAC with Manual Controls
• Left-Hand & Right-Hand Doors
• Factory-Installed Antenna & Speakers
• 2 Front-Roof Mounted Work Lights
• 2 Rear-Roof Mounted Work Lights
• Pull-down Sun Shade
• Lever Controlled 3-Point Linkage
• Rubber Floor Mat
• Right and Left Side Folding Mirrors
• Tilt Steering Column
• Seat: Mechanical Spring Suspension with Armrests
• Retractable Seat Belt
• Cup Holder
• Pendant Style (Suspended) Foot Pedals
• Hand Rails with Glass Heat Shields
• Hand and Foot Throttle
• Left Side and Right Side Foot Step Entry

OTHER STANDARD FEATURES
• Fuel Tank Under Platform, Ground Fill Fuel Capacity: 27.7 Gallons
• One-Piece Tilting Hood
• Tool Box, SMV Sign

MASSEY FERGUSON 931X LOADER – NON SELF-LEVELING
• One Piece Main Frame with Tapered Arms and Single Cross Member
• Quick Attach Loader Frame Mount with Pin Lock
• Built-in Parking Stands
• (2) 2.8 inch (70mm) Double Acting Lift Cylinders
• (2) 2.8 inch (70mm) Double Acting Bucket Cylinders
• Hydraulic Lines Routed Inside Main Frame for Protection and Visibility
• Galvanized Steel Pins with Bushings at Key Points
• Recessed Grease Zerk Points
• Universal Skid Steer or Euro Hook Type Implement Attachments
• Grille Guard Standard
• Fits MF4609M & MF4610M T4F; MF4609, MF4610, 4610LP T4i; and MF4700 Tractor Models
• Powder Painted with Corrosion Protection
• Bucket Level Indicator
• Lift Capacity to Full Height @ 31.5 inches Forward of Pivot Pin: 3020 lbs
• Maximum Lift Height: 136 inches at Pivot
• Breakout Force @ 31.5 inches Forward of Pivot Pin: 3540 lbs
• Rated Hydraulic Pressure: 2828 PSI
• Maximum Roll Back Angle: 50 Degrees
• Maximum Dump Angle: 44 Degrees
