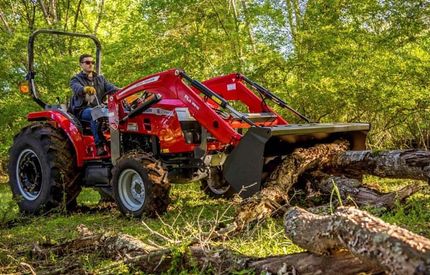

Combine the abilities of a utility tractor with the simplicity of a compact, and you’ve got the Massey Ferguson 2800E series. These machines are hardworking, easy to use and are very reliable. They come ready with a loader for chores around the yard. They easily tackle light field work. And you can always add other attachments to increase their versatility. Experience the excellent power-to-weight ratio and dependable service for yourself.
The ‘E’ in 2800E stands for economy. These tractors emphasize power over some of the features the ‘M’ Series premium compacts have. These big economy compacts are still well equipped and priced to be affordable.
There are two transmission options found in the 2860E series. The 8×8 mechanical transmission is a ‘back to the basics’ approach. There is a convenient shuttle to move from forward to reverse, which is excellent for loader work. The hydrostatic option has three ranges with infinite speed within each range (snail, turtle, hare). The heel-toe rocker pedal controls direction changes. The hydrostatic option has a cruise control lock that keeps the set speed until disengaged.
The transmission mount hydraulic pump is sized for excellent flow. It is separate from the steering hydraulics so these two systems do not compete while in operation. The tractor can have up to 3 remotes installed. Also at the rear, the Category I/II 3-point hitch is quite capable and draft control can be installed as well. There is an independant, engine driven 540 RPM rear PTO. It has SoftStart for smooth startup of PTO implements. There is no mid-mount PTO on the 2800E Series.
Massey 2850E Specs | |
---|---|
Engine | |
Engine HP | 57.3 HP |
Rated Engine Speed | 2600 RPM |
Engine Make and Model | Iseki E4FH |
Engine Displacement | 2.43 L |
Number of Cylinders | 4 |
Fuel type | Diesel |
Fuel Tank Capacity | 14 US Gal |
Aspiration | Turbocharged |
Fuel Injection | Direct Injection |
Cooling | Liquid Cooled |
Transmission | |
Transmission Type | 8×8 Synchro Shuttle / 3 Range HST |
Cruise | Yes |
4 Wheel Drive | Yes |
Differential Lock | Yes |
Brakes | Wet Disc |
Hydraulics | |
Hydraulic Flow | 12.6 Gal/min |
Max Operating Pressure | 2,347 PSI (16,180 kPa) |
System Capacity | 10 US Gal |
Pump Type | Gear |
Remote Valves Available | up to 3 |
Steering | Hydraulic Power Steering |
3 Point Hitch | |
Category | Category I/II |
Lift Capacity at Pins | 2,646 lbs |
Lift Capacity 24? Behind Pins | 2,426 lbs |
Draft Control | Optional |
PTO | |
Rear PTO | Standard |
Rear PTO Speed | 540 |
Type | Independent |
Loader | |
Model | FLx2815 |
Bucket Size Options | 72? |
Maximum Lift Height Pivot Pin | 9? 3-7/16? |
Lift Capacity to Max Height Pivot Pin | 2,822 lbs |
Breakout Force Pivot Pin | 4,234 lbs |
Digging Depth | 1/2? |
Max Dump Angle | 38° |
Max Rollback Angle | 27° |
Lift Cylinder Diameter | 3/4? |
Bucket Cylinder Diameter | 9/16? |
Tool Carrier | SS Quick Attach |
Self-Leveling | No |
