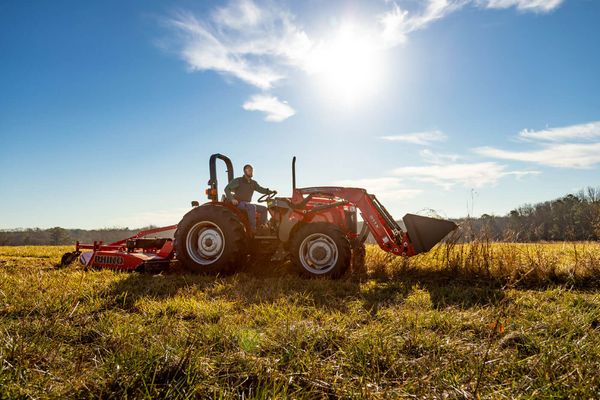

The Massey Ferguson 2600 H Series is a line of tough and dependable utility tractors that brings back the heritage and affordability of classic Massey Ferguson models. These rugged tractors still feature everything you expect in a Massey Ferguson, starting with a simple, open design.
MF 2607H Engine Specifications
Engine Make - Simpson
Engine Model - 7000 Series, 2.6L
Number of Cylinders - 3
Displacement, cu in (L) - 158 (2.588)
Engine Bore, in (mm) - 3.66 (93)
Engine Stroke, in (mm) - 5.00 (127)
Advertised Engine Power, Rated, hp (kW) - 74 (55.2)
Maximum Engine Power, hp (kW) - Same as advertised
Rated Engine Speed, rpm - 2000
Power Boost, hp (kW) - No boost
Fuel Tank capacity, gal (L) - 14.5 (55)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) - No DEF
Aspiration, Turbocharged or Naturally Aspirated - Turbocharged, intercooled
Fuel System Description - High Pressure Common Rail
Fuel System Control, Electronic or Mechanical - Electronic
Fuel Injection to combustion chamber, Direct or Indirect - Direct
Emission Level, US EPA Tier - Tier 4 Final
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) - No
Exhaust Gas Recirculation (EGR) - Cooled EGR
Diesel Oxidation Catalyst (DOC) - DOC standard
Diesel Particulate Filter (DPF) - No
Exhaust Pipe, Vertical stack or Horizontal - Vertical stack
Cooling System Fan Drive Type - Belt
Electrical System Rating, Volts - 12
Power Take-Off
PTO Horsepower, Basic / Optional Transmission, hp (kW) - 64 (47.7)
PTO Speeds, rpm - 540
PTO operational Type (Independent; Live; Continuous) - Independent
Massey Ferguson 2607H Transmission
Manufacturer's Description - 8Fx8R Synchro Shuttle
Transmission Type - Synchro Shuttle w/ComfiMesh
Number of Forward / Reverse Speeds - 8F / 8R
Creeper Range Available - No
Shuttle (Forward-Reverse) Available - Standard
MF 2607H Wheels and Tires
Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks - 2WD / 4WD
Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer - Front Steer
Wheelbase, 2WD, in (mm) - 80.7 (2050)
Wheelbase/Trackbase, MFD/4WD or Track, in (mm) - 81.5 (2070)
Front Tire Size, 2WD - 7.5x16, F2
Front Tire Size orTrack Width, MFD/4WD or Track - 9.5x24, R1
Rear Tire Size or Track Width - 16.9x28, R1
Axles and Brakes
Final Drive Location and Description - Outboard planetary
Axle Output End, Flange or Bar - Flange
Axle Bar Diameter, in (mm) - No bar axle
Suspended Front Axle Available - No
Service Brake Type - Internal multi-wet disc, mechanical
Massey Ferguson 2607H Hydraulic System
Hydraulic System Type - Ferguson hydraulics
Main Hydraulic Pump Type - Mark 1A scotch yoke piston pump
Implement Pump Flow, gpm (Lpm) - 10.6 (40.1)
Optional Pump Flow, gpm (Lpm) - No option
Number of Standard Remote Valves - 2
3-Point Hitch
3-Point Hitch Category - Category 1 and 2
Optional Hitch Category - No option
Draft Sensing or Lift Control - Draft, position and response control
Draft Link Ends Telescopic - Extendable
Standard Lift Capacity 24 Inches behind pin, lb (kg) - 2,755 (1250)
Optional Lift Capacity 24 Inches behind pin, lb (kg) - No option
