Schulte 5026

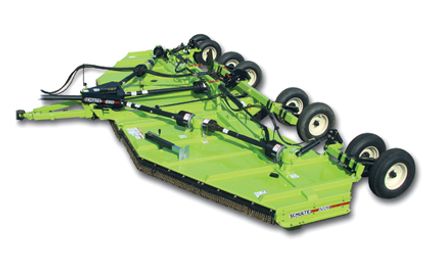

Schulte 5026 Image

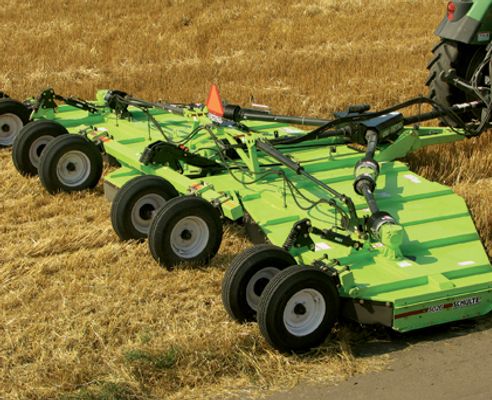

Schulte 5026 Image
Schulte 5026
  • 26' width
  • 1000 RPM driveline with heavy duty slip-clutches and 80 constant velocity U-joint
  • Round skid pans on standard unit
  • 2-piece replaceable skid shoes on wings
  • 10 GA deck with deck protection rings
  • 7.00 X 15 light truck tires in quantities of 6 or 8
  • Hydraulic phasing cylinder for level lift
  • Double acting wing lift cylinders with mechanical float
  • Spring steel bushings at all major pivot points
  • Suspension for center and wing frames
  • Transport locks for center section and wings
  • An optional fixed shredding blade kit is available for enhanced shredding
  • 50 degree splitter box keeps drive lines short and machine more compact
Cart
Call to order:
229-759-2484

Specs:

  • Cutting width: 314" (7.98 m)
  • Overall width: 321" maximum (8.15 m)
  • Overall length: 205" maximum (5.13 m)
  • Cutting height: 1" - 14" (25 -356 mm)
  • Transport clearance 13" (330 mm)
  • Overall transport width: : 117" (2.98 m)
  • Overall transport height 148" (3.76 m)
  • Shipping weight, wet: 6,800 lbs. (3,034 kg)
  • Hitch weight, transport: 2,400 lbs. (1,089 kg)
  • Cutting capacity: 2" diameter material (50 mm)
  • Minimum tractor HP: 120 HP (90 kW)
  • Tractor hydraulics: 2 double acting circ, 1,750 psi (12 MPA)
  • Wing outer: 974 RPM - 15,300 ft./min (280 km/hr.)
  • Wing inner: 812 RPM - 15,300 ft./min (280 km/hr.)
  • Center: 800 RPM - 15,079 ft./min (276 km/hr.)
  • Working range of wings: 15 down to 45 up
  • Blade overlap: 6" center to wing (152 mm) 5"
