Schulte FX-530

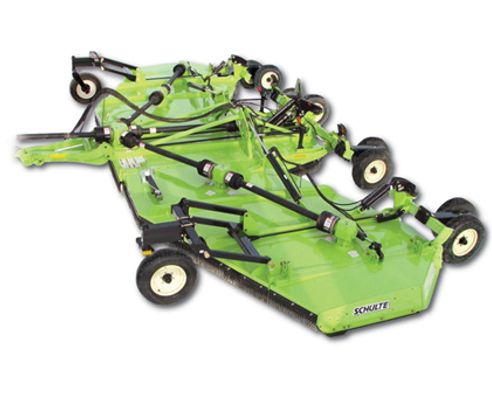

Schulte FX-530 Image

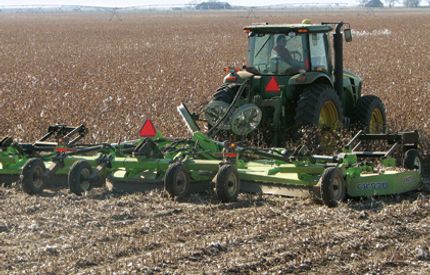

Schulte FX-530 Image
Schulte FX-530
  • 30 foot of mowing and shredding excellence in a rotary cutter
  • Accommodates 30", 32", 36" and 38" row spacings
  • Excellent shredding and distribution capabilities in Fixed Knife units
  • Unique drive layout allows for clutch at each of the five down boxes
  • Spun formed pans available on pan unit
  • Floating hitch with rubber grommet rear suspension
  • Phasing system for a parallel lift cut
  • Non-adjustable clutches provide low maintenance
  • Cyclone Deck Debris Fan Kit
  • 350 HP, 60 degree splitter gearbox allows for a unique driveline layout
Cart
Call to order:
229-759-2484

Specs:

  • Cutting width: 365" (30.4 ft. or 9.3 m)
  • Overall width: 377" (31.4 ft. or 9.6 m)
  • Overall length: 236" (19.7 ft. or 6 m)
  • Cutting height: 2" - 15" (51 mm - 381 mm)
  • Std Wheel Ext., transport width: 118" (3 m)
  • Row Crop Wheel Ext., transport width: 153" (3.88 m)

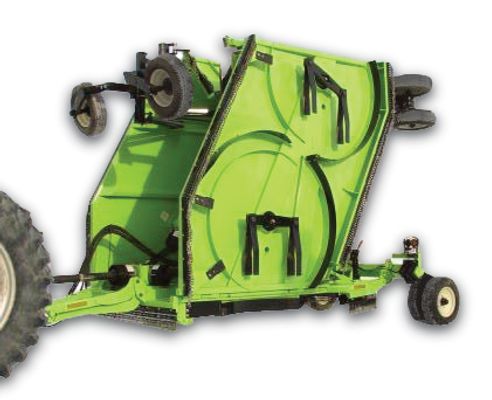

  • Transport height - without hyd. folding wing tips: 176" (14.7 ft. or 4.5 m)
  • Transport height - with hyd. folding wing tips: 153" (12.75 ft. or 3.9 m)
  • Weight: 12,300 lbs. (5,580 kg) depending on configuration
  • Hitch weight: 4,500 lbs. (2,041 kg) depending on configuration
  • Cutting capacity: 2" (51 mm)
  • Minimum tractor size: 200 HP (149 kW) ensure drawbar can support weight
  • Blade tip speed: 16,300 ft./min (4,970 m/min)
  • Blade overlap: 6" (152 mm)
  • Divider Box rating: 350 HP (261 kW)
  • Down Box rating: 210 HP (157 kW)
  • Deck thickness: .134" (3.4 mm)
  • Skirt thickness: 1/4" (6.4 mm)
  • Wing operating range: 16 degrees down to 21 degrees up
  • Diver box has 1.75" 20 spline input and output shafts
  • Down boxes have 1.75" 20 spline input shafts and 2.375" down shafts
