Till-N-Seed - Brillion

Till-N-Seed - Brillion Image
Till-N-Seed - Brillion Image
Till-N-Seed - Brillion

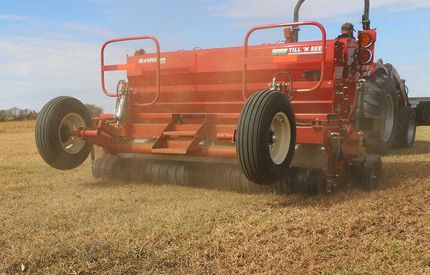

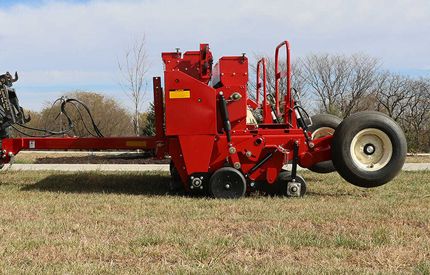

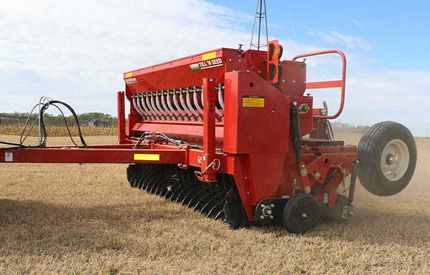

The Till-N-Seed is offered in a 6-foot three-point hitch model; two seed boxes are standard equipment. The front seed box features large micro-meters with an agitator and can plant a variety of seeds at varying rates in three ranges. The rear seed box features small micro-meters for the precise seeding of very fine, small seeds.


Built-in parking stands allow three-point hitch models to be safely detached from the tractor without the fear of tipping. A built-in walk-board with steps and handrails on the rear of the unit allows for easy filling of the seed boxes. Built-in tie-down lugs are available for securing the Till-N-Seed to trailers for transportation. A seed calibration tray makes custom seed rate calibration easy and is conveniently stored on the machine when not in use. Seed box disconnect pins disengage seeding mechanisms when the unit is used in tillage-only mode.
Cart
Call to order:
229-759-2484

6' Models:

  • 6' three-point hitch model available
  • Cat. I, II, quick-attach and iMatch compatible three-point hitch
  • Hitch can be moved off-center for use on wider tractors
  • Drive and tillage rotors made of abrasion resistant steel
  • Tillage rotor runs 2 1/2 times faster than drive rotor

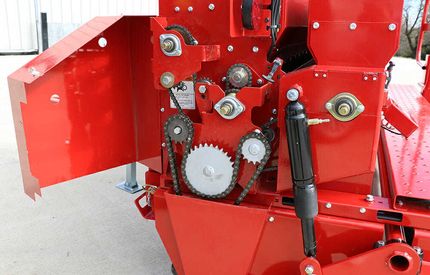

  • #80 drive chain
  • Tillage rotor free to follow ground's contour
  • Rotors mesh together for self-cleaning design

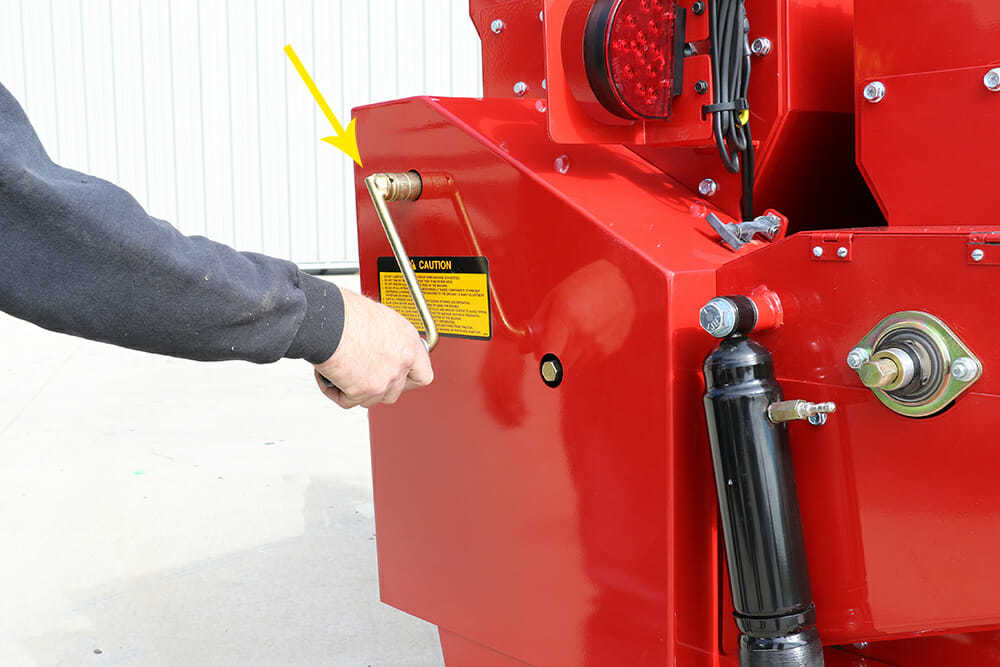

  • Air shock maintains tillage rotor's contact with soil
  • Heavy-duty 1 1/2" greaseable bearings on all rotor shafts
  • Adjustable gauge wheels control depth of tillage rotor
  • Floating cast iron firming roller provides final touch for ideal seedbed

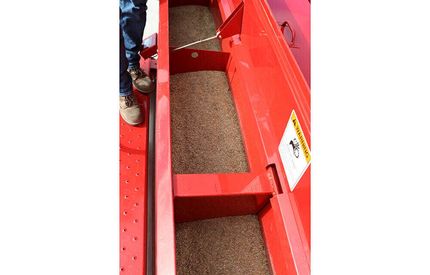

  • Double seed box capacity
  • Large micro-metered seed box for planting larger seed varieties
  • Small micro-metered seed box for seeding smaller seeds

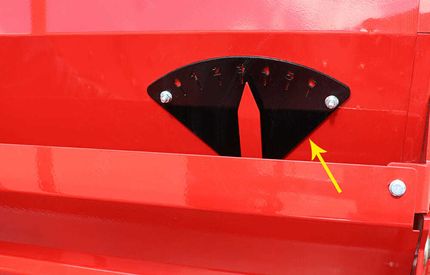

  • User friendly seed rate adjustments
  • Three seed rate ranges available for large micro-metered seed box by changing out sprockets
  • Seed box disconnect klik pin disconnects the seed drive for seed rate calibration and prevents wear and tear on the seed box drives in tillage-only mode

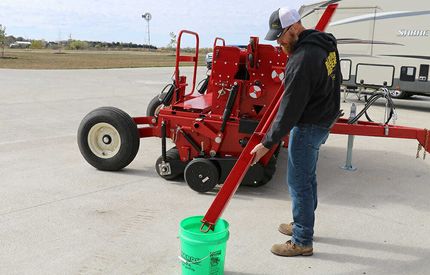

  • Wind deflector doubles as trough for catching seed during calibration process
  • Handrail, step and wallboard provide for operator safety
  • Rubber guard prevents debris or residue from being projected from the tillage rotors
  • Convenient brackets included for securing machine to trailers and for lifting machine on and off trailers
  • Integral parking stand
  • Parking pin allows unit to maintain correct orientation when unhitched from tractor
  • Powder coat paint

8' Models:

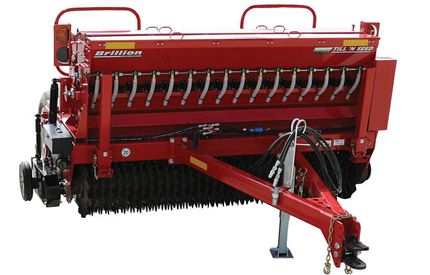

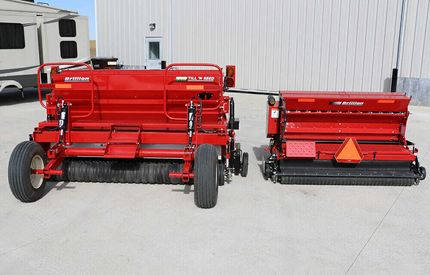

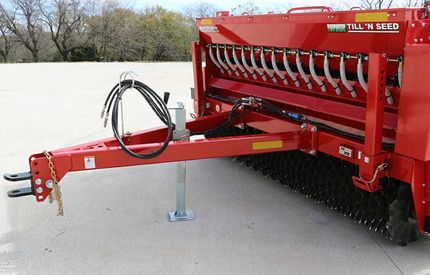

  • 8' pull-type and three-point hitch models available
  • Cat. II drawbar on pull-type models
  • 5L X 15-8 Ply tires on pull-type models
  • Cat. II, III free link and Cat. II, III, IIIN quick coupler three-point hitch
  • Hitch can be moved off-center for use on wider tractors on three-point hitch models
  • Drive and tillage rotors made of abrasion resistant steel
  • Tillage rotor runs 2.14 times faster than drive rotor
  • #60-2 drive chain
  • Tillage rotor free to follow ground's contour
  • Rotors mesh together for self-cleaning design

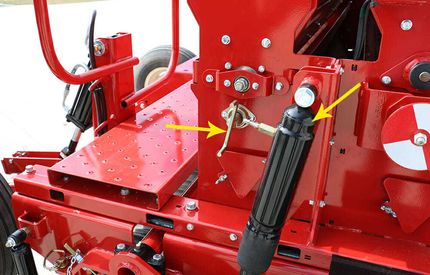

  • Adjustable air shock pressure for varying ground conditions
  • Heavy-duty 1 1/2" sealed bearings on all rotor shafts
  • Adjustable gauge wheels control depth of tillage rotor

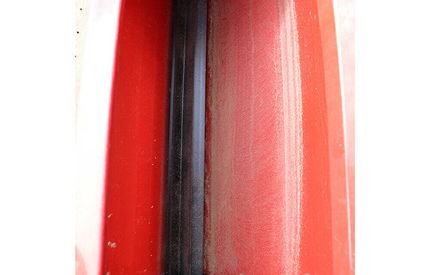

  • Rubber firming roller provides final touch for ideal seed to soil contact
  • Small micro-metered front seed box for seeding smaller seeds
  • Large micro-metered second seed box for planting larger seed varieties

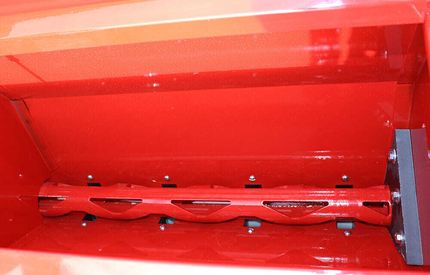

  • Optional third seed box: Blade agitator for seeding larger grass seed varieties
  • User friendly seed rate adjustments
  • Seed box disconnect pins disengage seeding mechanisms

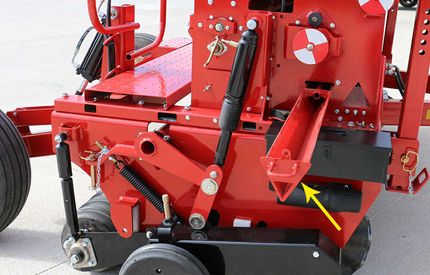

  • Slide-in seed calibration tray stores on machine when not in use

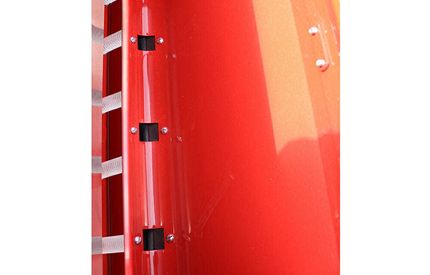

  • Handrail, step and walk board provide for operator safety
  • Convenient brackets included for securing machine to trailers
  • Integral parking stand
  • Parking pin allows unit to maintain correct orientation when unhitched from tractor on three-point hitch models
  • Powder coat paint

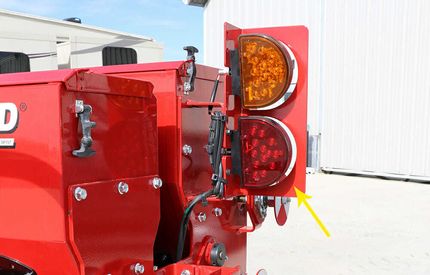

  • LED safety warning lights and SMV emblem
