The Brillion Sub Soilers are built on an all welded one-piece frame. The shanks bolt to a set of adjustable angle irons that are fastened to the underside of the frame. The rear shank mount bolt is the pivot; the front shank mount bolt is the shear bolt. When an obstruction is encountered, the front bolt will shear and the shank will trip rearward to clear the obstruction. The machine must then be raised out of the soil, the shank returned to position and a new shear bolt installed. This is a very user-friendly procedure to minimize downtime in the field. The Sub Soiler is designed to operate at a maximum depth of 16". Since maximum horsepower requirements are limited to 120 HP, these units are designed for small to medium size operations. These machines are close couples to the tractor with a three-point hitch.
Features:

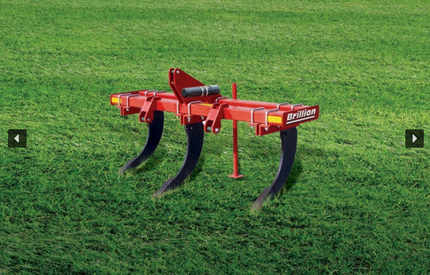

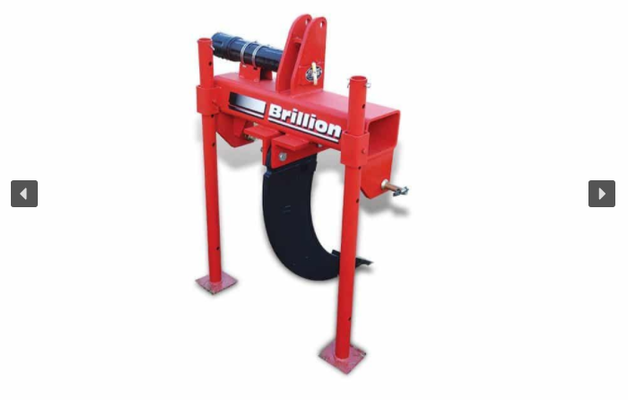

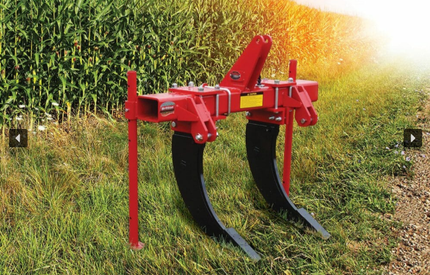

- One, two and three shank models available
- Three-point hitch - Cat. I free link on SCP 1
- Three-point hitch - Cat. II free link on SCP 2
- Three-point hitch - Cat. II free link; Cat. II, IIIN quick coupler hitch on double frame models
- 5" x 7" frame structure om single bar models
- 4" x 6" frame structure pm double bar models parking stand
- 29" under frame clearance when equipped with standard shanks
- 35" under frame clearance, equipped with high clearance shanks
- Heavy-duty laser cut parabolic shanks
- 0.625" x 3.75" shear bolt
- Shank mounts easily moveable on tool bar for infinite shank spacings
- Maximum of 16" working depth
- 2 1/2" flat steel points and flat reversible wearstrips standard equipment
- Powder coat paint
