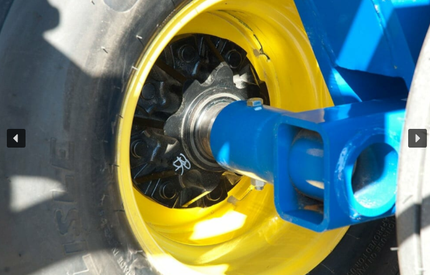

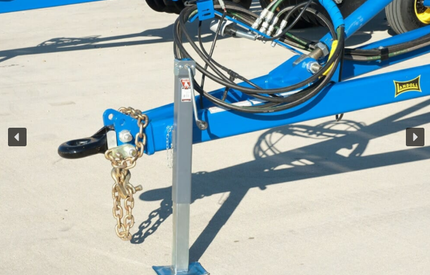

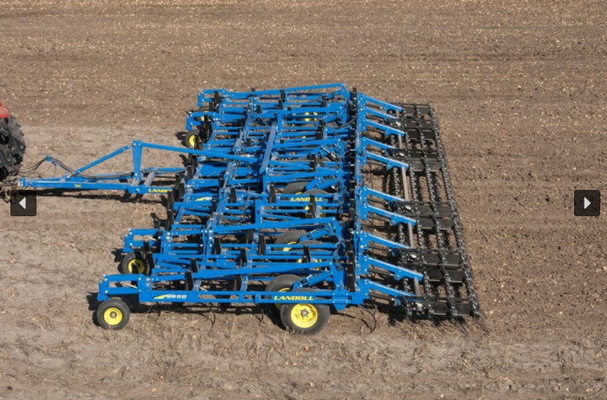

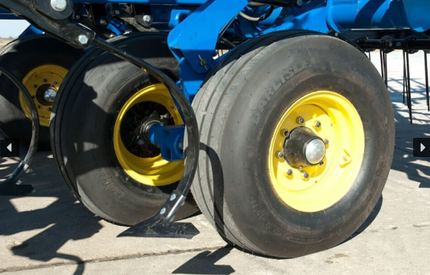

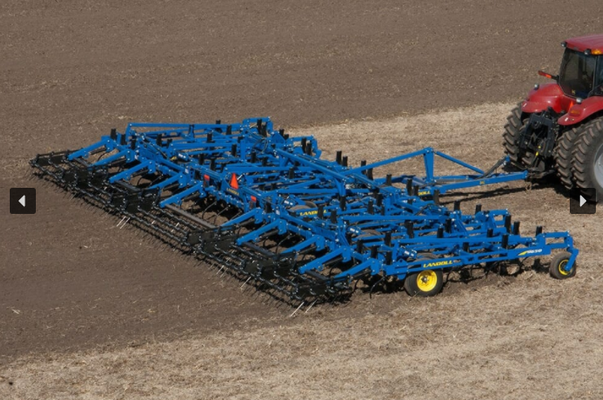

The Landoll 9630/9650 Series Field Cultivator uses precision, laser-cut structural steel frame members that are robotically welded for ultimate strength and reliability. This process of manufacturing provides the end-user with peace of mind that the Landoll 9600 Series Field Cultivator will be reliable day after day and season after season. The deep frame allows for a "split the middle" shank arrangement for unrestricted residue flow for perfect seedbed penetration. The frame is the anchor for the self-leveling hitch and walking tandem transport axles. The shanks are attached to a 4" x 3" structural steel tubes that offer 6" shank spacing on all models.

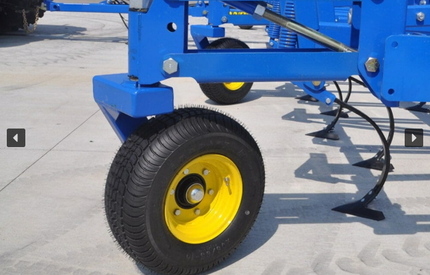

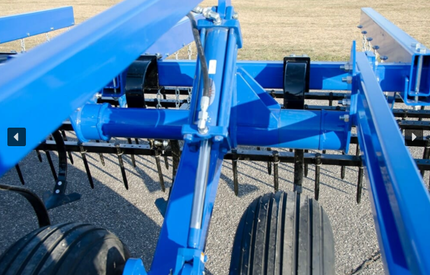

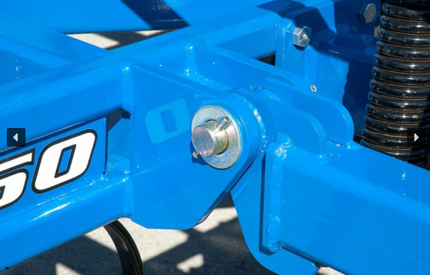

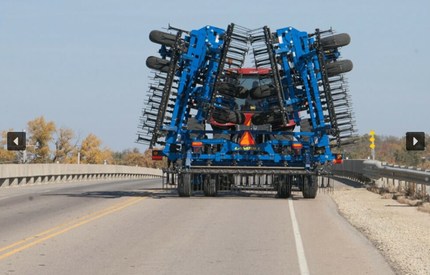

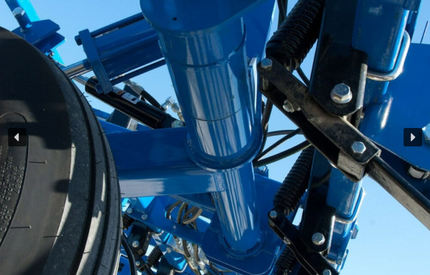

UMHW polymer is used on all rock shaft bearing surfaces. This provides for maintenance-free operation in this high wear area. The lift circuit uses 10" stroke phasing cylinders throughout for even raise/lower cycles. The cylinders use hardened bushings in all pivots and nickel and chrome-plated rods for extended life. Single point depth control at the front of the machine provides precise depth control in 1/4" increments. Pivoting wing gauge wheels are standard on the 18 through 50-foot models. 1 1/4" hinge pins on the wing fold and operate on UHMW maintenance-free bearings.

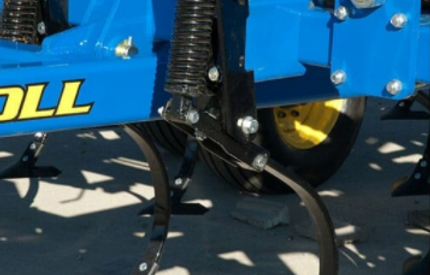

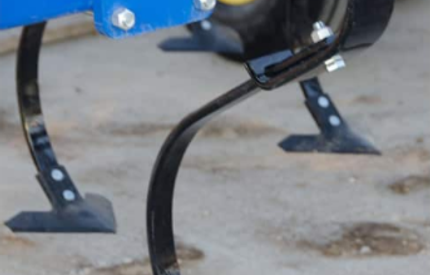

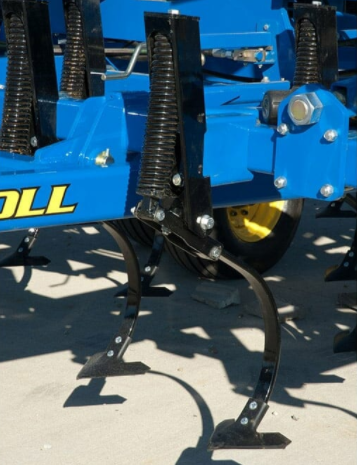

The shank is the heart of the Field Cultivator. Landoll offers two styles of shanks on 9600. The spring tension shanks offer up to 190 lbs. of point load with a 10" trip height, and 26 1/2" underframe clearance. 6" spacing with standard 47 degrees 8" sweeps will completely till the full width of the machine. The spring towers feature a Connex wear bushing. These bushings are Nitrotec coated for increased wear and corrosion resistance. The clamp assemblies utilize laser cut components for ease of assembly. Extension style springs are used exclusively on all Landoll spring tension shanks. A two-piece s-tine shank assembly is also available as an option in rock free conditions. Like its counterpart, it has 190 lbs. of point load and uses 47-degree sweeps.

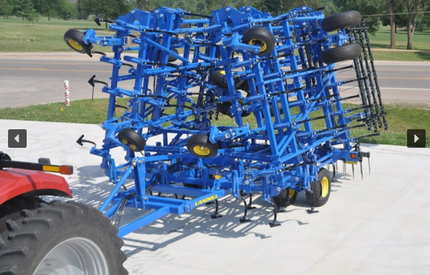

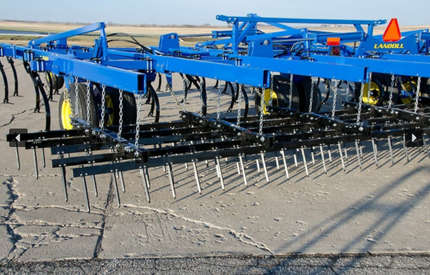

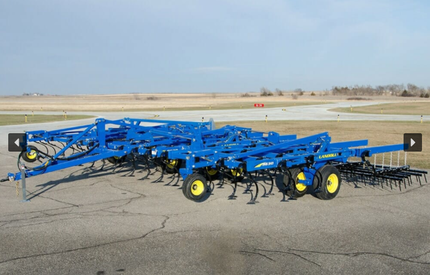

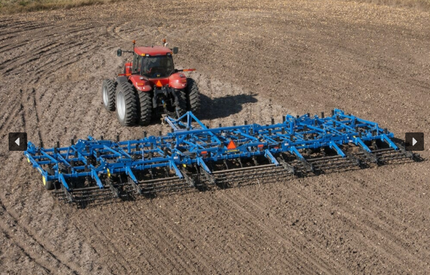

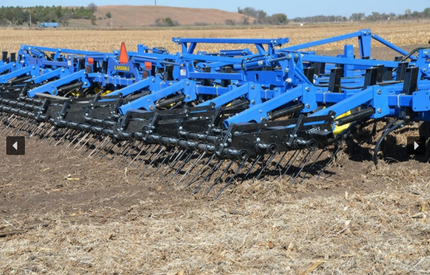

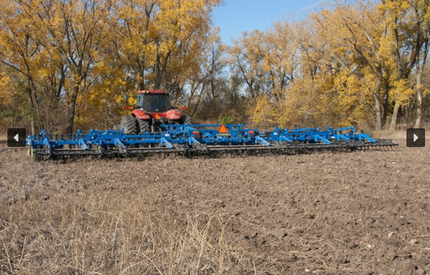

The Landoll 9600 Series is available in sized from 20' 6" to 50' 6". The 9630 models are 3 section units and the 9650 models are 5 section units. Horsepower requirements are in the 7 to 9 HP per foot range. The final field finsih will be determined by which an optional leveling devoce is chosen. Choose between a 4-row coil tine, 3-row coil tine with reel, 5-row spike and 3-bar spike with reel. A rear hitch for towing additional implements is also available.
