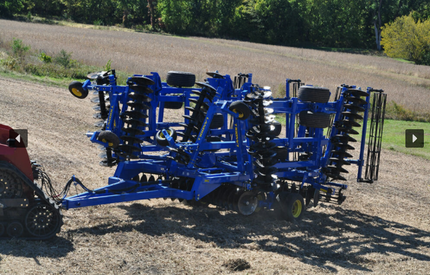

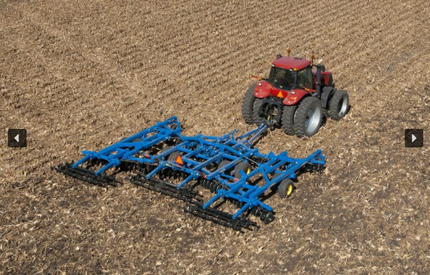

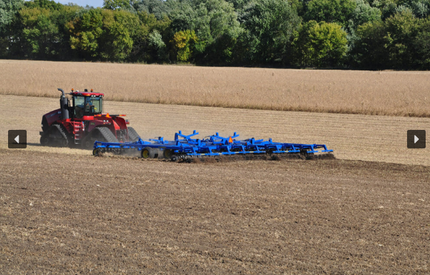

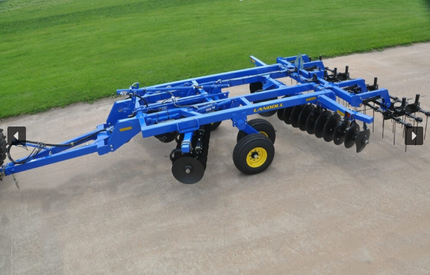

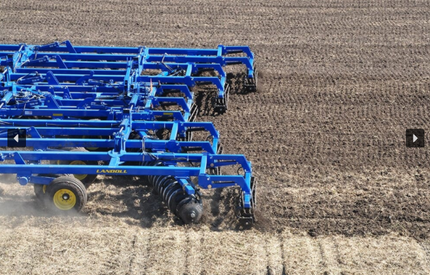

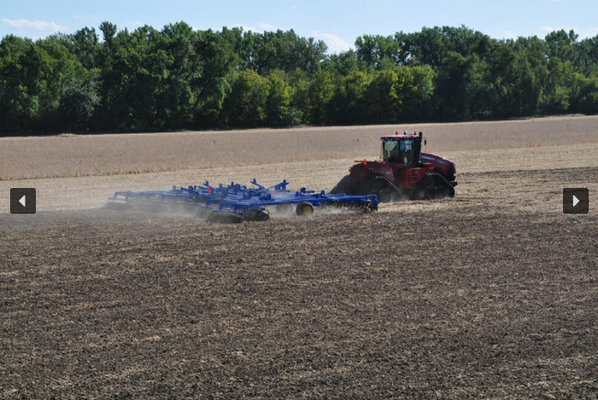

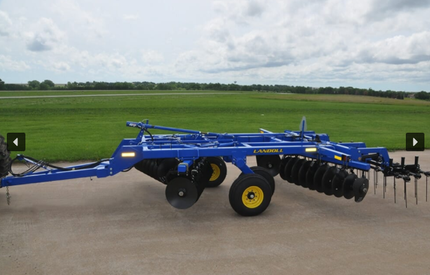

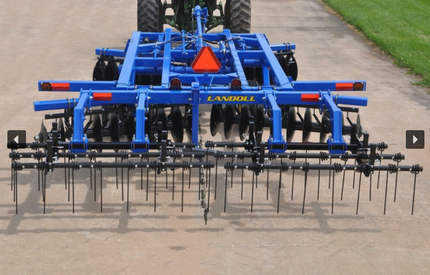

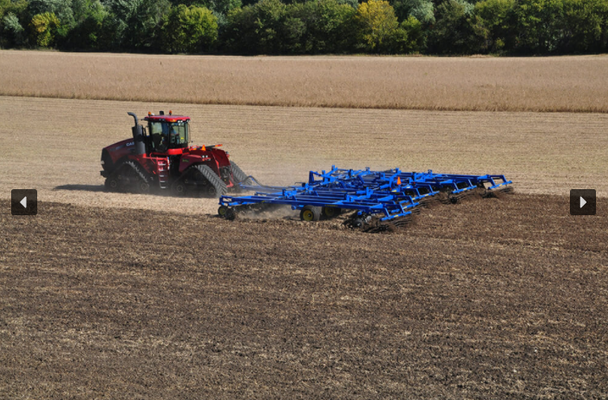

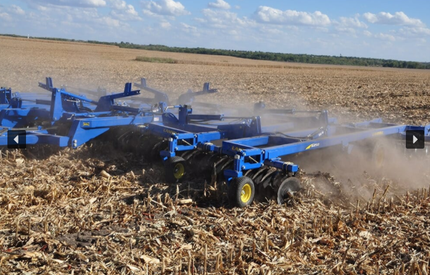

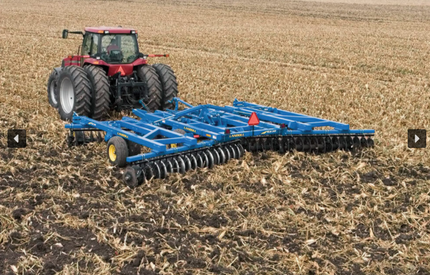

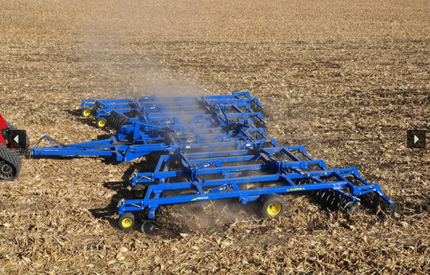

Landoll 6200 Series Tandem Disc Harrows are true multi-taskers. At home in high residue primary tillage applications as well as in secondary operations preparing a seedbed for planting, the 6200 Series from Landoll is the disc of choice. Features like the high ratio of weight per foot for penetration and cutting in the fall, as well as overlapping staggered gangs for exceptional leveling in the spring provide for user over two seasons. User-friendly adjustments allow the operator to fine-tine the 6200 Series to meet the needs of the season.

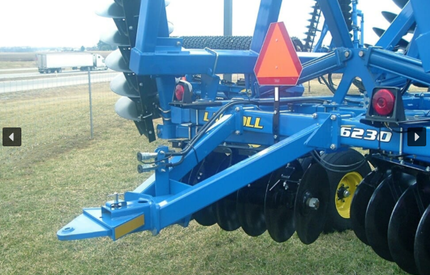

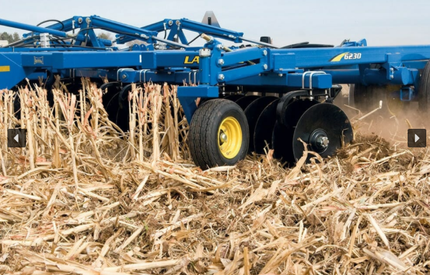

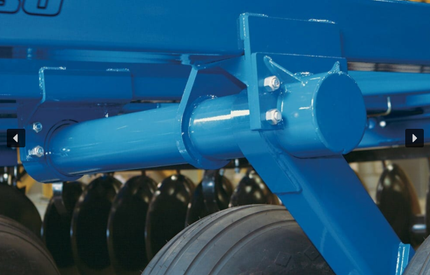

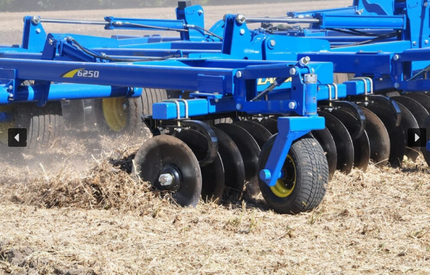

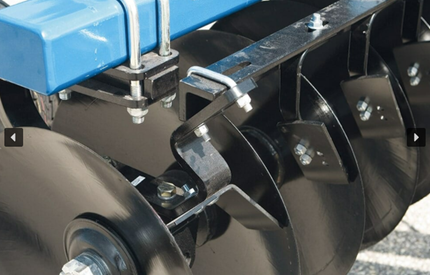

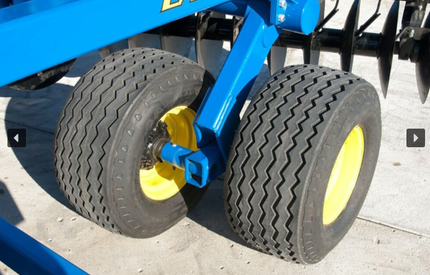

The 6200 Series Tandem Disc Harrow is built in true Landoll style: precision, laser cut frame components that embrace the technology of robot welding to its fullest. Durability is built-in, not added on. Incorporations of UHMW polymer in the lift axles provides a maintenance-free feature that eliminates daily greasing. Trunnion mount bearings are used throughout the disc assemblies and are covered by a 3-year warranty. Gang angles are fixed at 20 degrees on the front and 18 degrees on the rear. Disc blades are spaced at 7", 8 3/4" or 10 1/2". Blade diameters are 22". 24", 26" or 28" (model specific) to match the needs of the most discriminate customer. The self-levelling hitch and the single point depth control add to the list of items that extend the reliability beyond the competition. Over-sized tires on walking tandem axles carry the load and allow for precision depth control across the entire width of the harrow. Pivoting gauge wheels on the front of the wings contribute to a controlled depth of the wings at higher speeds.

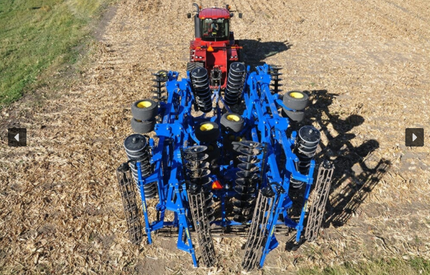

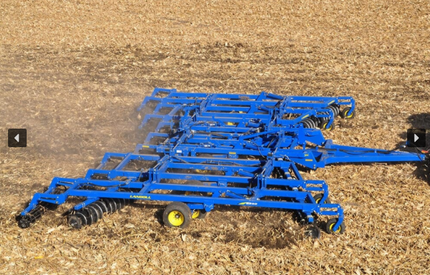

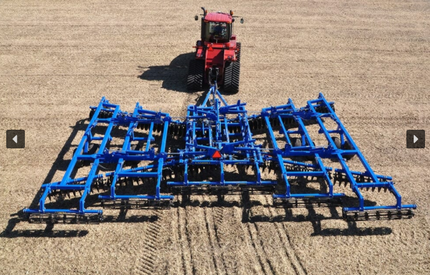

The 6200 Series Tandem Disc Harrow is available in sizes from 12' to 50'. Rigid units are available in 12', 14' and 15' models. The folding units up to 36' fold in 3 sections while the units from 40' to 50' fold in 5 sections. The 3-section units transport under 17'11". The 5 section machines transport at 17'6". Transport heights range from 9'9" to 15'8".
Features:
