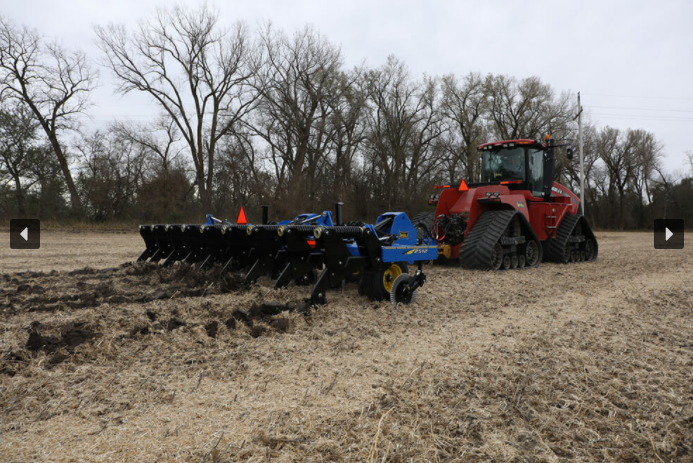

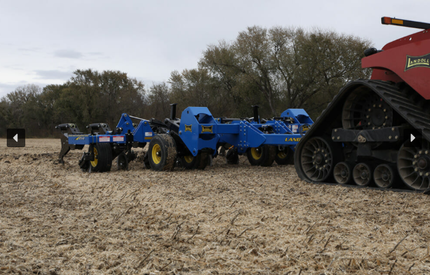

2500 In-Row Ripper

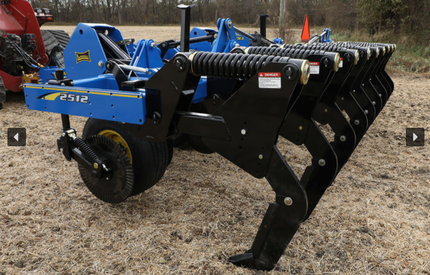

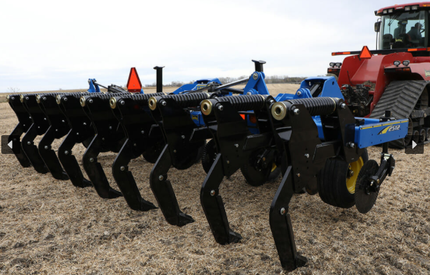

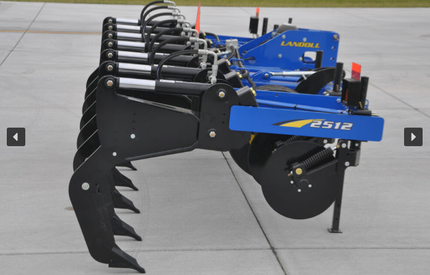

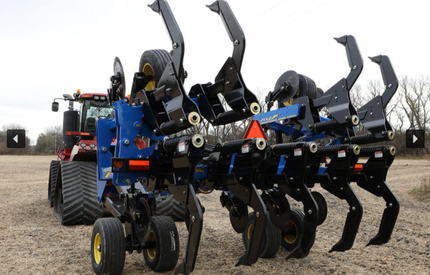

The 2500 In-Row Ripper shank mounts are built to withstand the rigorous torture that operating in unknown soil profiles can dish out. The auto-reset spring shank assemblies allow for 2,300 lbs. of point load and 16" of trip height. New to the line-up is the heavy-duty hydraulic auto-reset shank assemblies that offer a massive 4,000 lbs. of point load and 28" trip height. This is the most rugged shank offered and can handle heavy clay soils with ease and offers protection in rocky conditions. Rigid-shear bolt models are also available for areas with minimal soil obstructions.

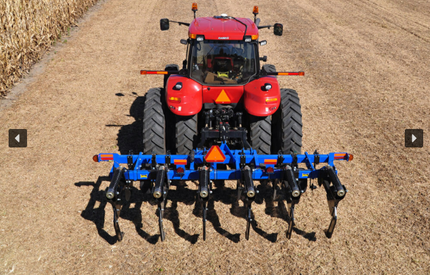

Built with 6" x 6" and 6" x 4" structural steel tubing, the robotically welded frame is the foundation for heavy-duty Cat. II, III or IV three-point hitch. The robust frame is the anchor for the lead coulters that start the tillage process. The rear bar of the frame supports the 2500's shank assemblies.

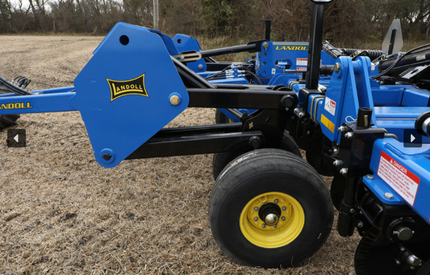

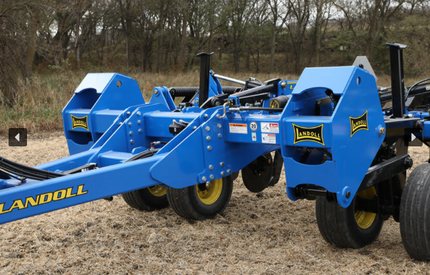

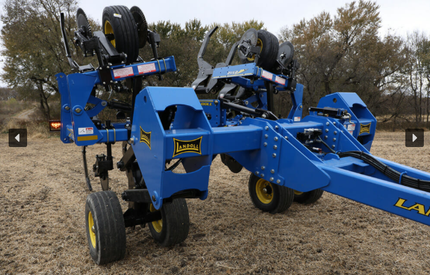

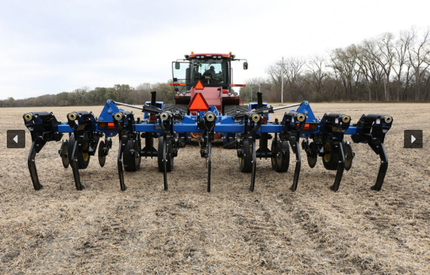

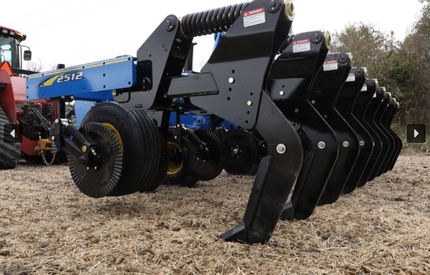

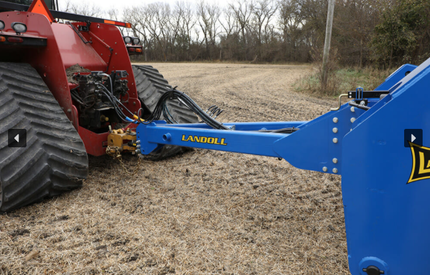

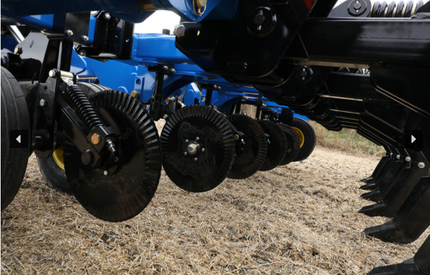

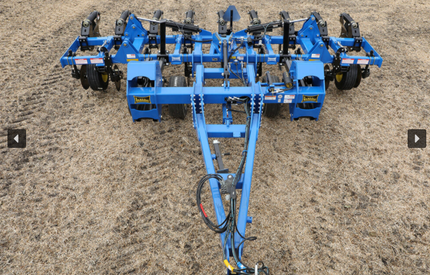

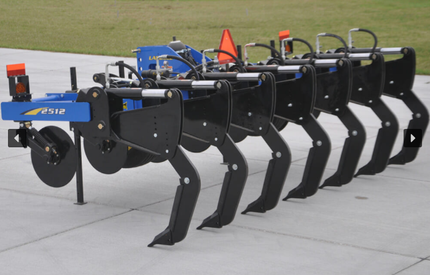

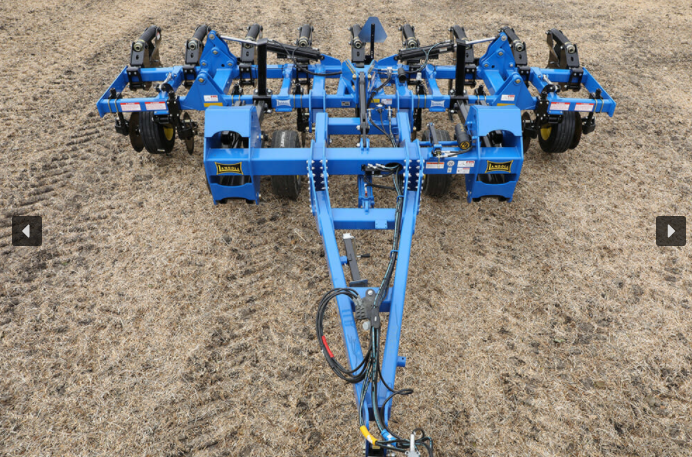

The 2500 In-Row Ripper can be equipped with auto-reset spring shank assemblies, HD hydraulic auto-reset shanks, or rigid-shear bolt shanks. Shank leg options include the 1 1/4" straight leg, the 1 1/4" parabolic leg, or the 3/4" low disturbance shank. Spring cushion lead coulters with differemt blade options cut the residue and slice the upper layers in the soil profile ahead of the shanks. Turnbuckle-style adjustable gauge wheels allow for quick, positive depth changes for different conditions. The 2500 Series is available in 3 to 7 shank non-folding models and in 7 to 16 shank folding models. The larger folding models include a heavy-duty pull hitch caddy.
