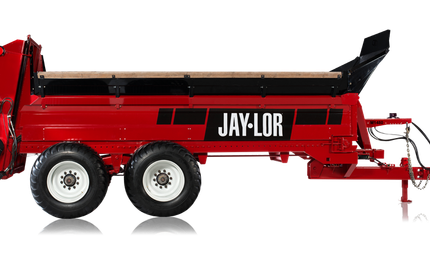

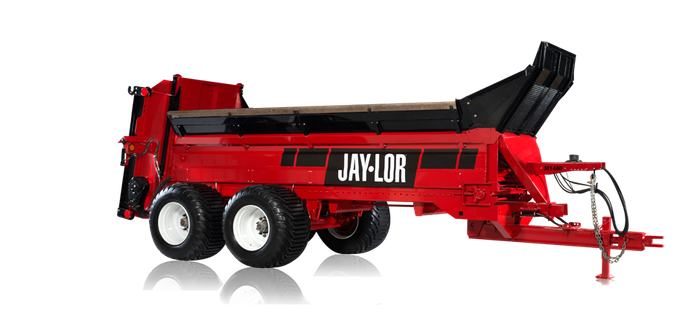

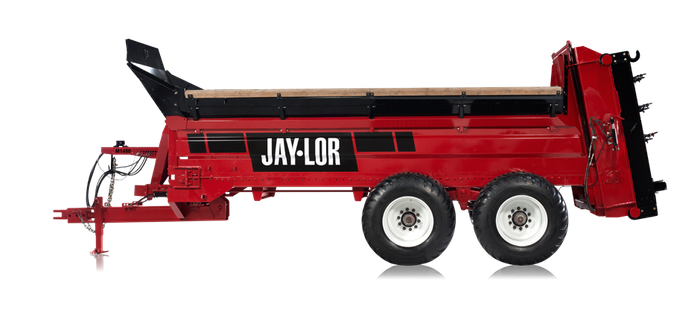

M1480 Manure spreader

M1480 Manure spreader Image
M1480 Manure spreader Image
M1480 Manure spreader

M1480 Manure spreader specs:

  • Struck capacity - 480 cubic ft. or 13.6 cubic m
  • Heaped capacity - 710 cubic ft. or 20.1 cubic m
  • Overall height - 130 in. or 330 cm
  • Overall length - 380 in. or 965 cm
  • Overall width - 120 in. or 305 cm
  • Inside body height - 50 in. or 127 cm
  • Inside body length - 240 in. or 610 cm
  • Inside body width - 60 in. or 152 cm
  • Loading height - 100 in. or 254 cm
  • PTO speed - 1000 RPM
  • Beater speed - 405 RPM
  • Recommended tractor class - 120-200 HP
  • Floor thickness - 1/4 in. or 6 mm
  • Side wall thickness - 3/16 in. or 4.8 mm
  • Standard tires - 445.65 R 22.5 RADIAL
  • Recommended tires - 700/40 22.5 BIAS
  • Standard dual assembly - DUAL SPRUNG AXLES
Cart
Call to order:
229-759-2484

JAYLOR's commercial manure spreaders are engineered to be simple and robust, providing years of trouble free performance. Cambered commercial-grade highway axles and brakes are standard equipment along with oil bath hubs, making the chassis virtually maintenance-free. The optional hydraulic side axle allows for operation in the muddiest conditions, as dynamic load balancing provides on-the-fly tongue weight ratio adjustments from 0.5%-10%.

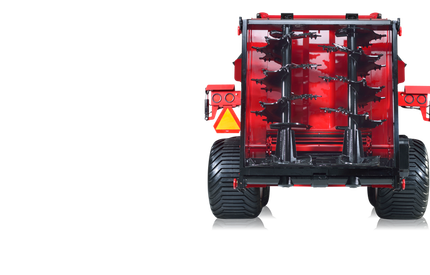

The quick-attach vertical beaters and hydraulic guillotine door, provide a full 40' of consistent spread both from front to back of the load and across the width of the spread. Paired with an optional rear canopy, material can be precisely applied over 50' and from 4-15 tons/acre. The beaters are held by reinforced 2-1/4" bearings which withstand the abuse from large stones and frozen chunks. Six paddles are on the beater base, allow for a fine spread of fiborous and liquid materal.
