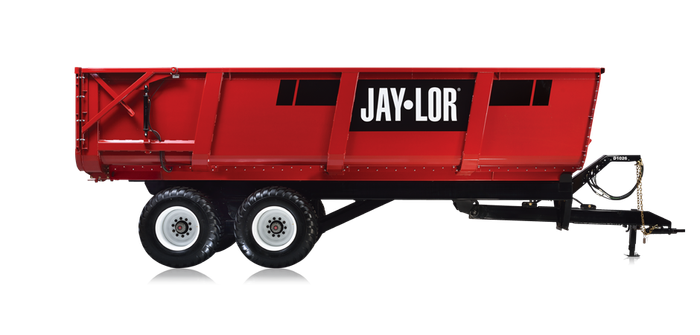

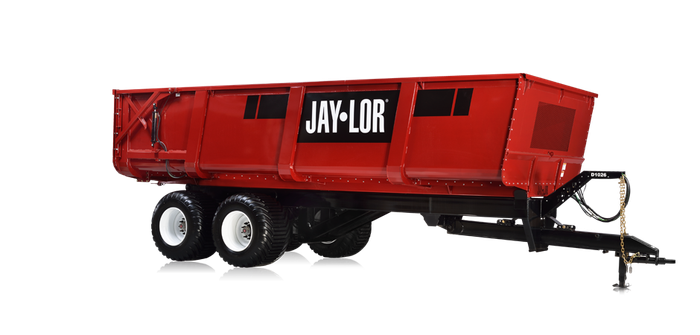

D1026 Dump wagon

D1026 Dump wagon specs:

• Struck capacity - 1315 cubic ft. or 37.2 cubic m
• Capacity 24" ext. - 1840 cubic ft. or 52.1 cubic m
• Grain capacity - 59,700 lbs. or 27,100 kg
• Inside box length - 312 in. or 792 cm
• Inside box width - 121 in. or 307 cm
• Inside box height - 60 in. or 152 cm
• Dumping angle - 47 degrees
• Cycle time - 75 seconds
• Discharge height - 61 in. or 155 cm
• Overall length - 399 in. or 10.1 m
• Overall width - 141 in. or 358 cm
• Overall height - 127 in. or 323 cm
• Floor thickness - 1/4 in. or 6 mm
• Side wall thickness - 3/16 in. or 4.8 mm
• Gross weight - 26,200 lbs. or 11,900 kg
• Standard tires - 445/65 R22.5
• Standard wheel assembly - TANDEM WALKING BEAM
• Recommended tractor class - 180 HP
• Cylinder oil volume - 22 GAL or 83 L
• Oil from tractor - 3.96 GAL or 15 L
