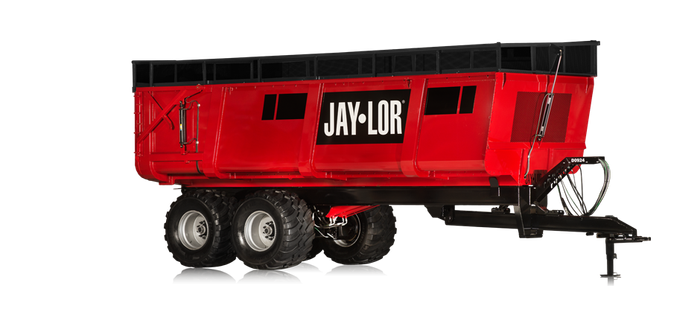

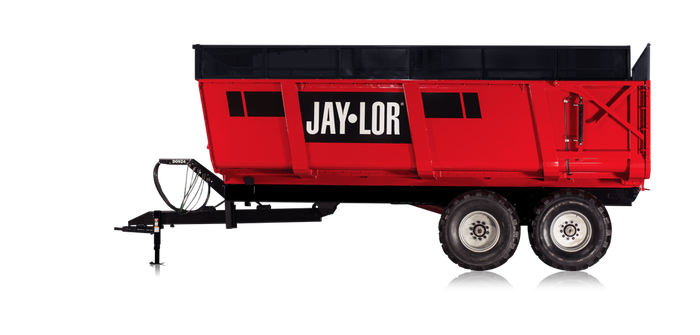

D0924 Dump wagon

D0924 Dump wagon specs:

• Struck capacity - 1095 cubic ft. or 31.0 cubic m
• Capacity 24" ext. - 1053 cubic ft. or 43.3 cubic m
• Grain capacity - 49, 600 lbs. or 22,500 kg
• Inside box length - 288 in. or 732 cm
• Inside box width - 109 in. or 277 cm
• Inside box height - 60 in. or 152 cm
• Dumping angle - 47 degrees
• Cycle time - 75 seconds
• Discharge height - 58 in. or 148 cm
• Overall length - 375 in. or 953 cm
• Overall width - 127 in. or 323 cm
• Overall height - 125 in. or 318 cm
• Floor thickness - 1/4 in. or 6 mm
• Side wall thickness - 3/16 in. or 4.8 mm
• Gross weight - 25,000 lbs. or 11,350 kg
• Standard tires - 445/65 R22.5
• Standard wheel assembly - TANDEM WALKING BEAM
• Recommended tractor class - 130 HP
• Cylinder oil volume - 22 GAL or 83 L
• Oil from tractor - 3.96 L or 15 L
