D0825 Dump wagon

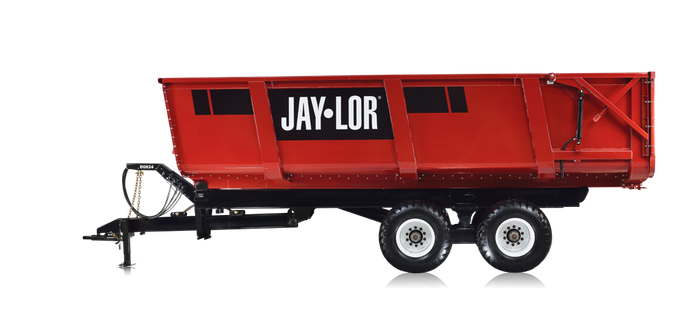

D0824 Dump wagon:

• Stuck capacity - 975 cubic ft. or 27.6 cubic m
• Capacity 24" ext. - 1360 cubic ft. or 38.5 cubic m
• Grain capacity - 44,200 lbs. or 20,100 kg
• Inside box length - 288 in. or 732 cm
• Inside box width - 97 in. or 246 cm
• Inside box height - 60 in. or 152 cm
• Dumping angle - 47 degrees
• Cycle time - 75 seconds
• Discharge height - 58 in. or 148 cm
• Overall length - 375 in. or 953 cm
• Overall width - 111 in. or 282 cm
• Floor thickness - 1/4 in. or 6 mm
• Side wall thickness - 3/16 in. or 4.8 mm
• Gross height - 24,600 lbs. or 11,200 kg
• Standard tires - 445/65 R22.5

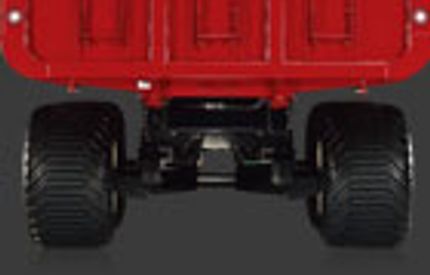

• Standard wheel assembly - Tandem walking beam
• Recommended tractor class - 100 HP
• Cylinder oil volume - 22 gal. or 83 L
• Oil from tractor - 3.96 gal. or 15 L
