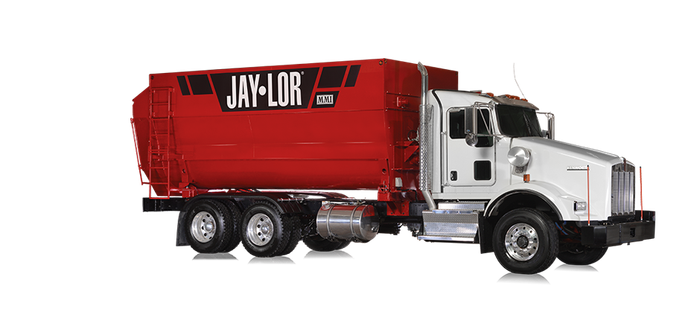

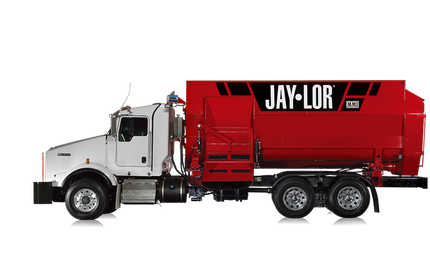

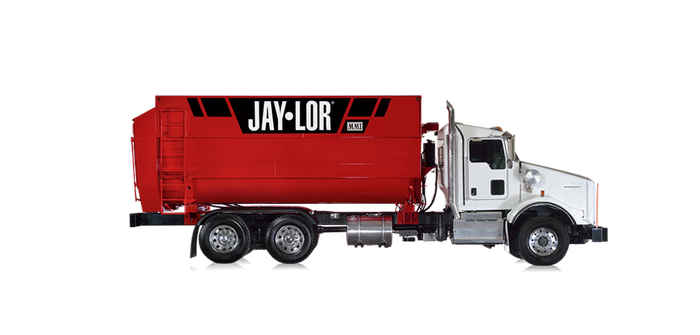

H1950 Horizontal quad auger mixer

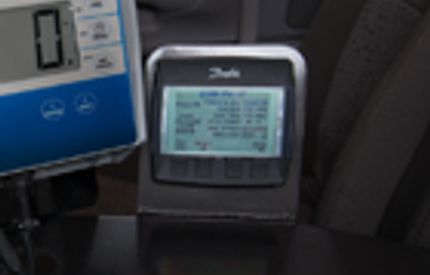

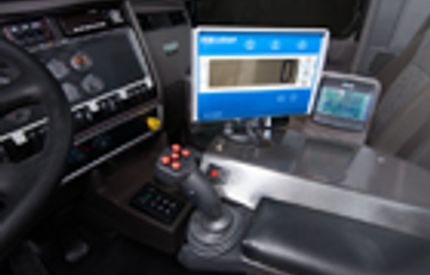

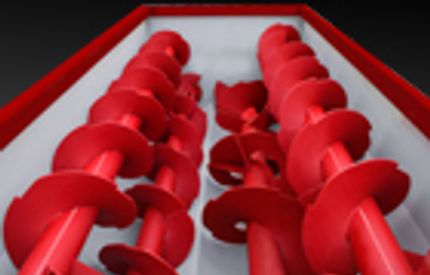

JAYLOR's Horizontal Quad Auger TMR mixers are designed by cattlemen for cattlemen. Models H1650, H1850 and H1950 delivering extreme strength without excess weight. Modern hydrostatic smart controls and intuitive joystick control assure power and performance that deliver feed accurately, and efficiently.
- Capacity - 950 cubic ft. or 26.9 cubic m
- Ration capacity - 28000 lbs. or 12700 kg
- Box weight - 22000 lbs. or 10000 kg
- Box height - 88 in. or 224 cm
- Box length - 233 in. or 592 cm
- Box width - 102 in. or 259 cm
- Overall height on typical truck - 133 in. or 338 cm
- Overall length on typical truck - 320 in. or 813 cm
- Overall width on typical truck - 102 in. or 259 cm
- Recommended truck engine - 360 HP
- Variable auger speed - 4-26 RPM

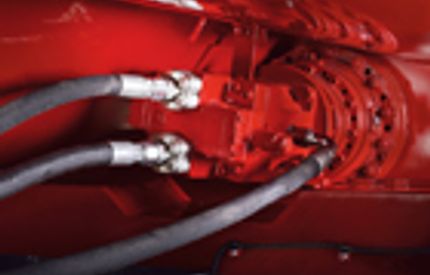

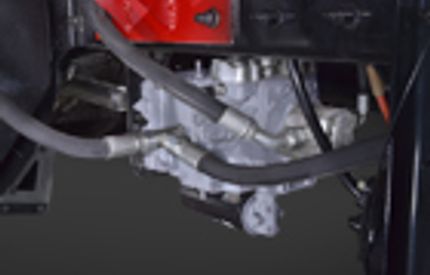

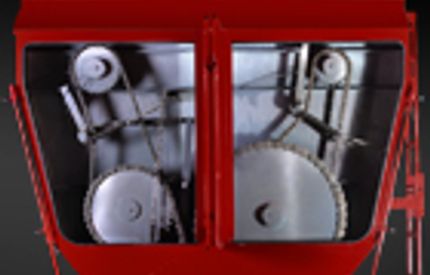

- Auger drive system - HYDROSTATIC
- Number of optional knives - 36
- Top auger thickness - 1/2 in. or 12.7 mm
- Lower auger thickness - 5/8 in. or 16 mm
- Discharge height on typical truck - 52 in. or 132 cm

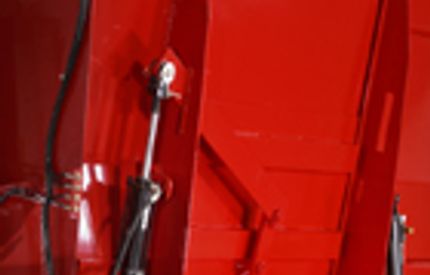

- Door opening width - 48 in. or 122 cm
- Floor thickness - 1/4 in. or 6 mm
- Drum wall thickness - 1/4 in. or 6 mm
- Rear axle requirement - 44000 lbs. or 20000 kg
- Front axle requirement - 14000 lbs. or 6400 kg
