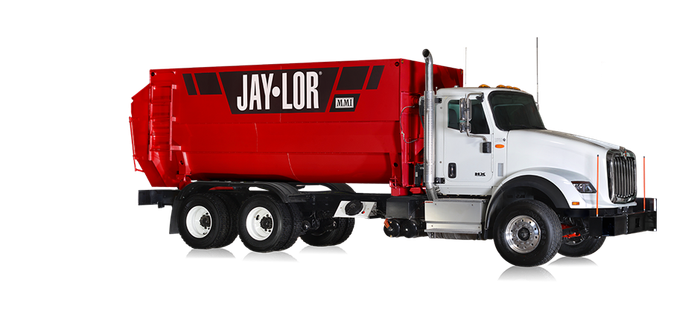

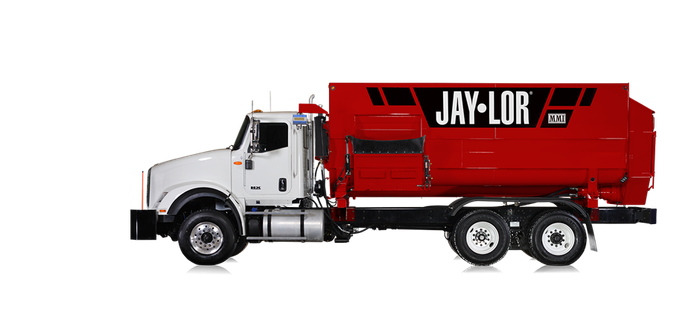

H1850 Horizontal quad auger mixer

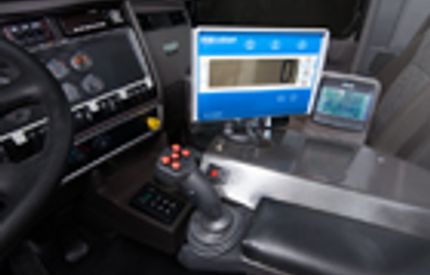

JAYLOR's Horizontal Quad Auger TMR mixers are designed for cattlemen by cattlemen. Models H1650, H1850 and H1950 prove you with the right capacity for your operation, each engineered and built with rugged construction delivering extreme strength without excess weight. Modern hydrostatic and intuitive joystick control assure power and performanace that deliver feed accurately, and efficiently.
- Capacity - 850 cubic ft. or 24.1 cubic m
- Ration capacity - 24500 lbs. or 11100 kg
- Box weight - 19500 lbs. or 11100 kg
- Box height - 82 in. or 208 cm
- Box length - 233 in. or 592 cm
- Box width - 94 in. or 239 cm
- Overall height on typical truck - 127 in. or 323 cm
- Overall length on typical truck - 320 in. or 813 cm
- Overall width on typical truck - 102 in. or 259 cm
- Recommended truck engine - 300 HP
- Variable auger speed - 4-26 RPM

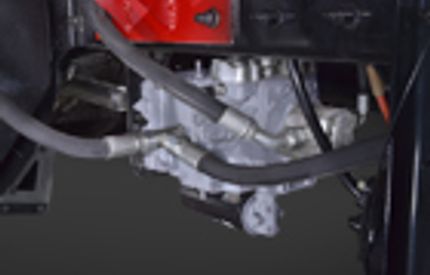

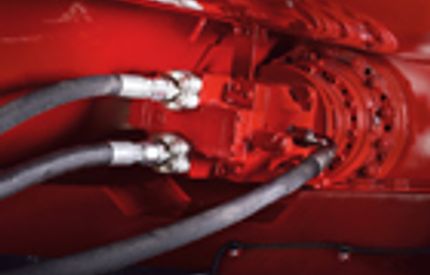

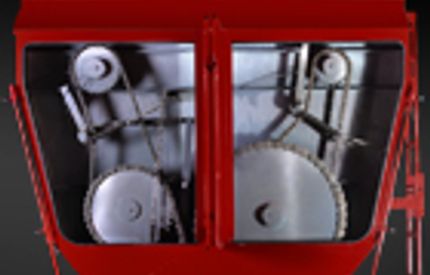

- Auger drive system - HYDROSTATIC
- Number of optional knives - 36

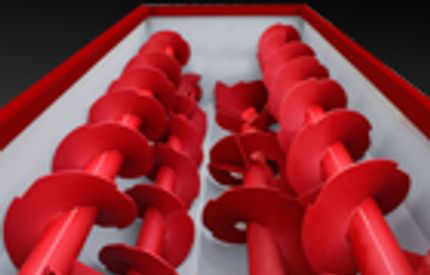

- Top auger thickness - 1/2 in. or 12.7 mm
- Lower auger thickness - 5/8 in. or 16 mm

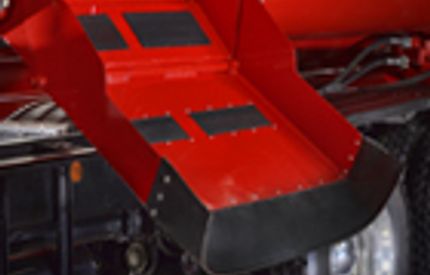

- Discharge height on typical truck - 52 in. or 132 cm

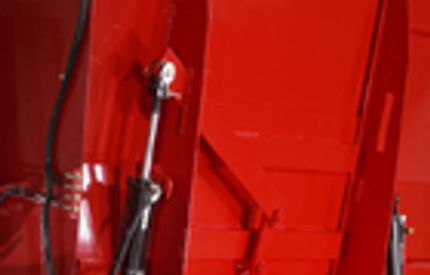

- Door opening width - 42 in. or 122 cm
- Floor thickness - 1/4 in. or 6 mm
- Drum wall thickness - 1/4 in. or 6 mm
- Rear axle requirement - 40000 lbs. or 18100 kg
- Front axle requirement - 12500 lbs. or 5700 kg
