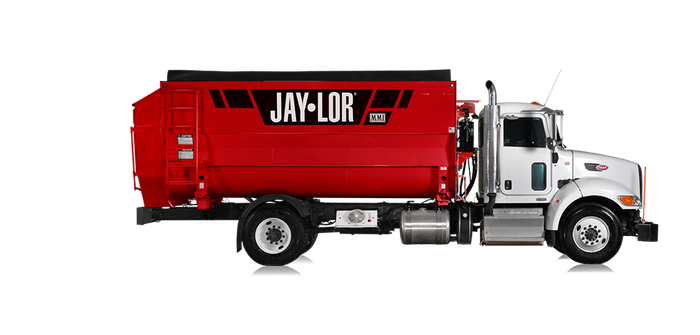

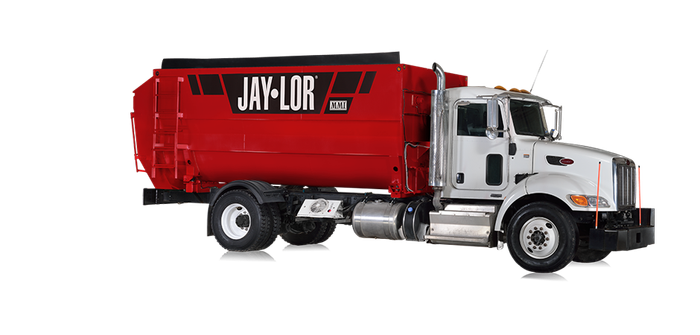

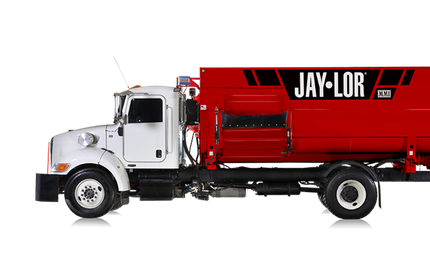

H1650 Horizontal quad auger mixer

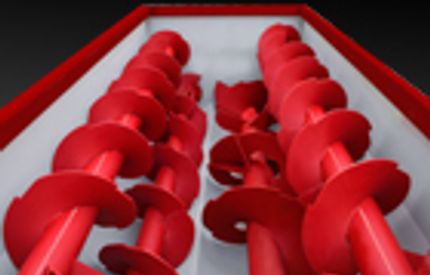

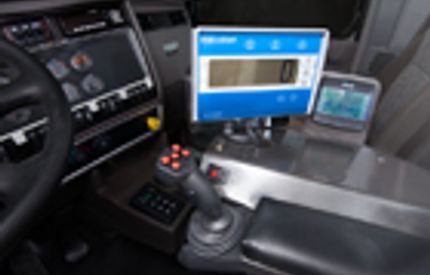

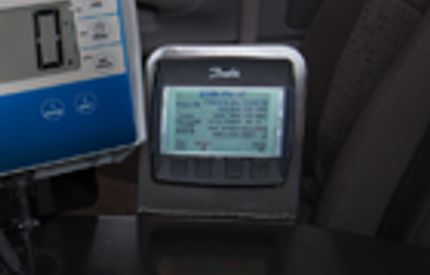

JAYLOR's horizontal quad auger TMR mixers are designed by cattlemen for cattlemen. Models H1650, H1850 and H1950 provide you with the right capacity for operation, each engineered and built with rugged construction delivering extreme strength without excess weight. Modern hydrostatic smart controls and intuitive joystick control assure power and performance that deliver feed accurately, and efficiently.
- Capacity - 65o cubic ft. or 18.4 cubic m
- Ration capacity - 19500 lbs. or 8850 kg
- Box weight - 16000 lbs. or 7250 kg
- Box height - 76 in. or 193 cm
- Box length - 209 in. or 531 cm
- Box width - 94 in. or 239 cm
- Overall height on typical truck - 121 in. or 307 cm
- Overall length on typical truck - 299 in. or 760 cm
- Overall width on typical truck - 102 in. or 259 cm
- Recommended truck engine - 260 HP
- Variable auger speed - 4-26 RPM

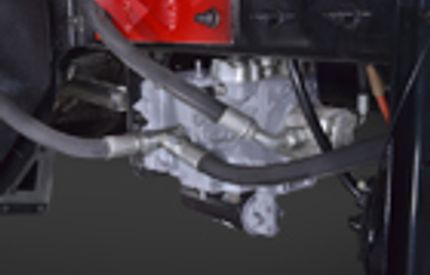

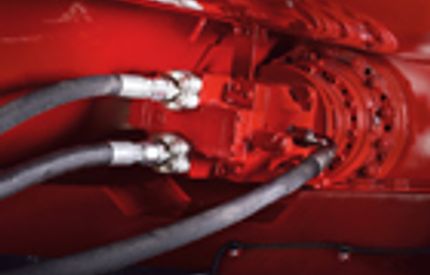

- Auger drive system - HYDROSTATIC
- Number of optional knives - 36
- Top auger thickness - 1/2 in. or 12.7 mm
- Lower auger thickness - 5/8 in. or 16 mm

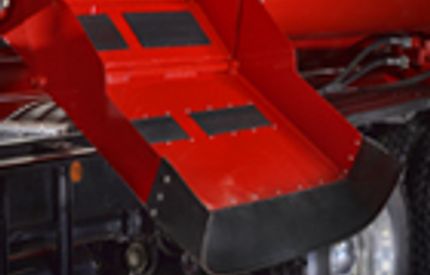

- Discharge height on typical truck - 52 in. or 132 cm

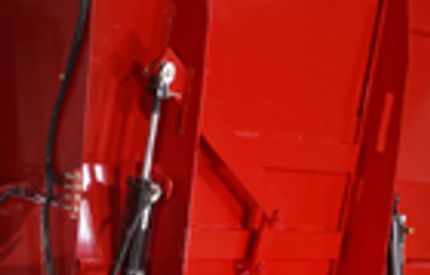

- Door opening width - 48 in. or 122 cm
- Floor thickness - 1/4 in. or 6 mm
- Drum wall thickness - 1/4 in. or 6 mm
- Rear axle requirement - 32000 lbs. or 14500 kg
- Front axle requirement - 11000 lbs. or 5000 kg
