JAYLOR Twin auger series - HD

JAYLOR Twin auger series - HD Image
JAYLOR Twin auger series - HD Image
JAYLOR Twin auger series - HD

5750HD

  • Capacity no extension - N/A
  • Capacity 8" extension - N/A
  • Capacity 12" extension - 740 cubic feet, 21.0 cubic m
  • Capacity 16" extension - 780 cubic feet, 22.1 cubic m

5850HD

  • Capacity no extension - 800 cubic feet, 22.7 cubic m
  • Capacity 8" extension - 865 cubic feet, 24.5 cubic m
  • Capacity 12" extension - 910 cubic feet, 25.8 cubic m
  • Capacity 16" extension - 960 cubic feet, 27.2 cubic m

51000HD

  • Capacity no extension - 925 cubic feet, 26.2 cubic m
  • Capacity 8" extension - 990 cubic feet, 28.0 cubic m
  • Capacity 12" extension - 1045 cubic feet, 29.6 cubic m
  • Capacity 16" extension - 1095 cubic feet, 31.0 cubic m

51250HD

  • Capacity no extension - 1125 cubic feet, 31.9 cubic m
  • Capacity 8" extension - 1190 cubic feet, 33.7 cubic m
  • Capacity 12" extension - 1245 cubic feet, 35.3 cubic m
  • Capacity 16" extension - 1295 cubic feet, 36.7 cubic m
Cart
Call to order:
229-759-2484

5750HD

  • Weight - 15500 lbs. or 7000 kg
  • Height - 120 in. or 305 cm
  • Length - 290 in. or 737 cm
  • Drum width - 91 in. or 231 cm
  • PTO speed - 1000 RPM
  • Minimum HP requirements - 125 HP
  • Auger speed - 38 RPM
  • Number of knives - 18
  • Auger flighting thickness - 3/4 in. or 19 mm
  • Max discharge height - 66 in. or 168 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 1/4 in. or 6 mm

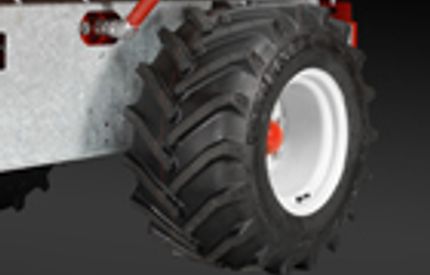

  • Standard tires - 435/50R 19.5 (4)
  • Wheel assembly - Walking beam

5850HB

  • Weight - 17600 lbs. or 8000 kg
  • Height - 116 in. or 295 cm
  • Length - 308 in. or 782 cm
  • Drum width - 102 in. or 259 cm
  • PTO speed - 1000 RPM
  • Minimum HP requirements - 155 HP
  • Auger speed - 38 RPM
  • Number of knives - 22
  • Auger flighting thickness - 3/4 in. or 19 mm
  • Max discharge height - 68 in. or 173 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 3/4 in. or 19 mm
  • Drum wall thickness - 1/4 in. or 6 mm
  • Standard tires - 445/50R 22.5 (4)
  • Wheel assembly - Walking beam

51000HD

  • Weight - 19800 lbs. or 9000 kg
  • Height - 117 in. or 297 cm
  • Length - 318 in. or 808 cm
  • Drum width -102 in. or 259 cm
  • PTO speed - 1000 RPM
  • Minimum HP requirements - 155 HP
  • Auger speed - 38 RPM
  • Number of knives - 22
  • Auger flighting thickness - 3/4 in. or 19 mm
  • Max discharge height - 68 in. or 173 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 3/4 in. or 19 mm
  • Drum wall thickness - 1/4 in. or 6 mm
  • Standard tires - 275/70R 22.5 (8)
  • Wheel assembly - Walking beam

51250HD

  • Weight - 23100 lbs. or 10500 kg
  • Height - 135 in. or 343 cm
  • Length - 318 in. 808 cm
  • Drum width - 102 in. or 259 cm
  • PTO speed - 1000 RPM
  • Minimum HP requirements - 200 HP
  • Auger speed - 41 RPM
  • Number of knives - 26
  • Auger flighting thickness - 3/4 in. or 19 mm
  • Max discharge height - 68 in. or 173 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 3/4 in. or 19 mm
  • Drum wall thickness - 1/4 in. or 6 mm
  • Standard tires - 275/70R 22.5 (8)
  • Wheel assembly - Walking beam
