JAYLOR Single auger series

JAYLOR Single auger series Image
JAYLOR Single auger series Image
JAYLOR Single auger series

5350

  • Capacity no extension - 350 cubic feet, 9.9 cubic m
  • Capacity 8" extension - 380 cubic feet, 10.8 cubic m
  • Capacity 12" extension - 405 cubic feet, 11.5 cubic m
  • Capacity 16" extension - 425 cubic feet, 12.0 cubic m

5400

  • Capacity no extension - 375 cubic feet, 10.6 cubic m
  • Capacity 8" extension - 410 cubic feet, 11.6 cubic m
  • Capacity 12" extension - 440 cubic feet, 12.5 cubic m
  • Capacity 16" extension - 465 cubic feet, 13.2 cubic m

5425

  • Capacity no extension - 450 cubic feet, 12.7 cubic m
  • Capacity 8" extension - 485 cubic feet, 13.7 cubic m
  • Capacity 12" extension - 515 cubic feet, 14.6 cubic m
  • Capacity 16" extension - 540 cubic feet, 15.3 cubic m

5575

  • Capacity no extension - 475 cubic feet, 13.5 cubic m
  • Capacity 8" extension - 515 cubic feet, 14.6 cubic m
  • Capacity 12" extension - 545 cubic feet, 15.4 cubic m
  • Capacity 16" extension - 575 cubic feet, 16.3 cubic m
Cart
Call to order:
229-759-2484

5350

  • Weight - 7300 lbs. or 3300 kg
  • Height - 103 in. or 262 cm
  • Length - 201 in. or 511 cm
  • Drum width - 91 in. or 231 cm
  • PTO speed - 540 RPM
  • Min HP requirements - 60 HP
  • Auger speed - 41 RPM
  • Number of knives - 9
  • Auger flighting thickness - 5/8 in. or 16 mm
  • Max discharge height - 60 in. or 152 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 5/8 in. or 16 mm
  • Drum wall thickness - 1/4 in. or 6 mm

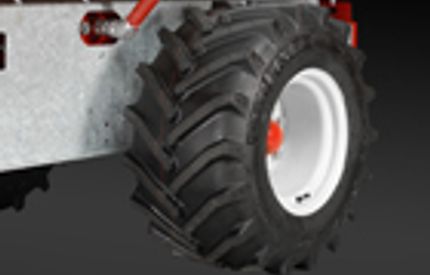

  • Standard tires - 12.5L - 15FI 8 Ply (2)
  • Wheel assembly - Single straight axle

5400

  • Weight - 7900 lbs. or 3400 kg
  • Height - 93 in. or 236 cm
  • Length - 212 in. or 538 cm
  • Drum width - 102 in. or 259 cm
  • PTO speed - 540 RPM
  • Minimum HP requirements - 70 HP
  • Auger speed - 41 RPM
  • Number of knives - 8
  • Auger flighting thickness - 5/8 in. or 16 mm
  • Max discharge height - 60 in. or 152 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 5/8 in. or 16 mm
  • Drum wall thickness - 1/4 in. or 6 mm
  • Standard tires - 15.0/55-17b26 Ply (2)
  • Wheel assembly - Single straight axle

5425

  • Weight - 7500 lbs. or 3400 kg
  • Height - 108 in. or 274 cm
  • Length - 212 in. or 538 cm
  • Drum width - 97 in. or 246 cm
  • PTO speed - 540 RPM
  • Minimum HP requirements - 70 HP
  • Auger speed - 41 RPM
  • Number of knives - 9
  • Auger flighting thickness - 5/8 in. or 16 mm
  • Max discharge height - 60 in. or 152 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 1/4 in. or 6 mm
  • Standard tires - 15.0/55-17 26 Ply (2)
  • Wheel assembly - Single straight axle

5575

  • Weight - 9400 lbs. or 4300 kg
  • Height - 114 in. or 290 cm
  • Length - 216 in. or 549 cm
  • Drum width - 102 in. or 259 cm
  • PTO speed - 540 RPM
  • Minimum HP requirements - 80 HP
  • Auger speed - 41 RPM
  • Number of knives - 11
  • Auger flighting thickness - 5/8 in. or 16 mm
  • Max discharge height - 60 in. or 152 cm
  • Conveyor width - 36 in. or 91 cm
  • Door opening width - 42 in. or 107 cm
  • Floor thickness - 5/8 in. or 16 mm
  • Drum wall thickness - 1/4 in. or 6 mm
  • Standard tires - 15.0/55-17 26 Ply (2)
  • Wheel assembly - Single straight axle
