JAYLOR Mini TMR

JAYLOR Mini TMR  Image
JAYLOR Mini TMR  Image
JAYLOR Mini TMR

JAYLOR Mini TMR Mixers have proven themselves ideal for a wide range of applications, including feeding smaller dairies when starting our, and specialty groups such as weaned calves, dry cows, maternity pens, and fresh cows on larger dairy farms. The Mini TMR Mixers are great for supplemental feeding of beef cows during calving.

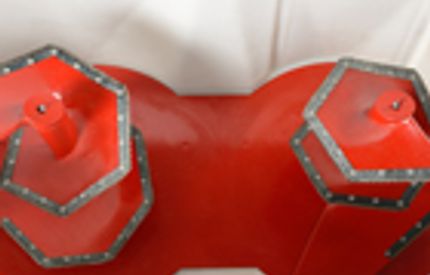

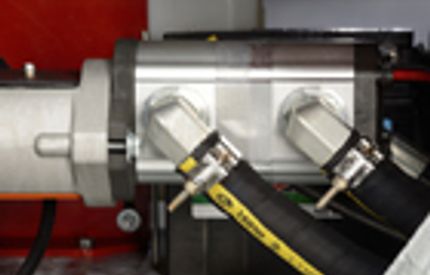

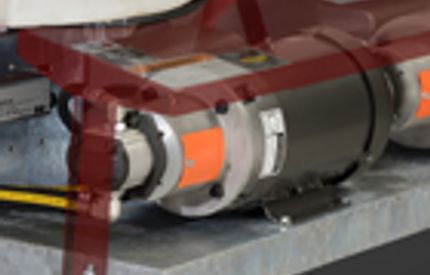

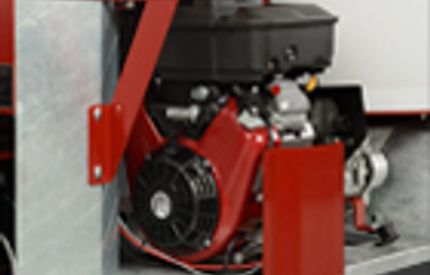

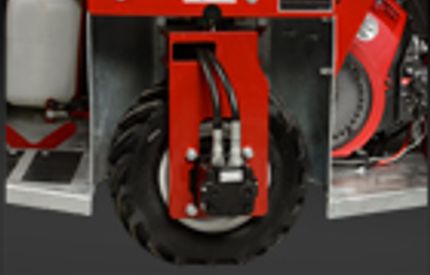

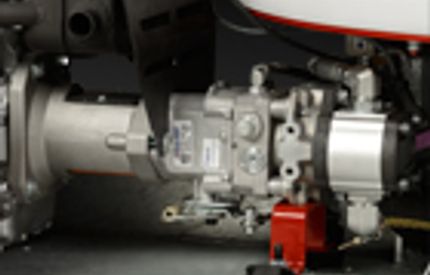

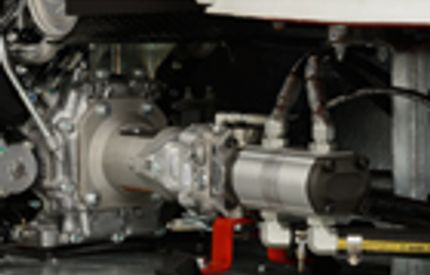

Each 5050 and 5100 model is now available in four unique versions: a 3-wheel, all-wheel Self-Propelled; a gas engine-powered Pull-Type; a gas engine-powered Truck Mount; and an electric motor or gas engine-powered Stationary. In order to meet your particular needs, these mixers are designed and engineered with the same capabilities and durability as the larger 5000 Series mixers, including the ability to incorporate long forage into true total mixed rations. 5050 and 5100 models operate hydrostatically, with the augers driven by a powerful hydraulic motor. The 5275 model has been specifically designed to process bales up to 4'x5' into a uniform TMR that resists sorting. Each model comes with a complete scale system for accurate weighing.

Cart
Call to order:
229-759-2484

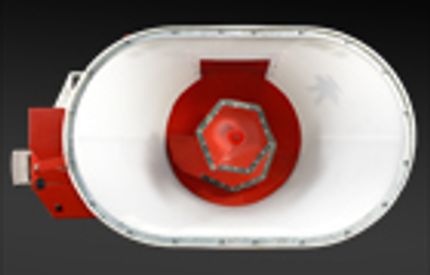

5050

  • Configurations - Trailer, self-propelled, stationary, truck mount, skid steer
  • Capacity - 5o cubic feet, 1.42 cubic meters
  • Drum material - Polyethylene
  • Drum thickness - .43 in, 10.9 mm

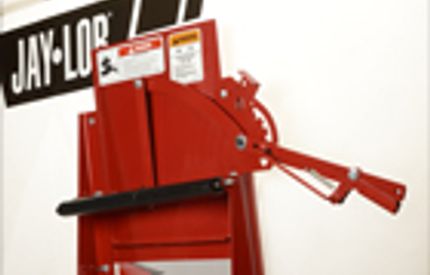

  • Door width - 18 in, 45.7 cm
  • Frame - Galvanized steel

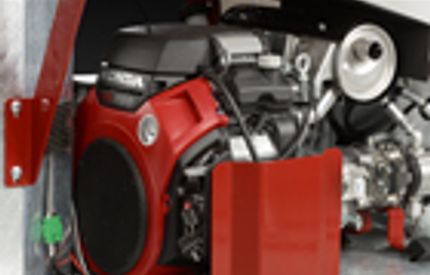

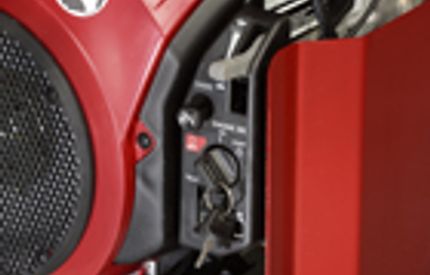

  • Standard drive - 13 HP Honda gas engine

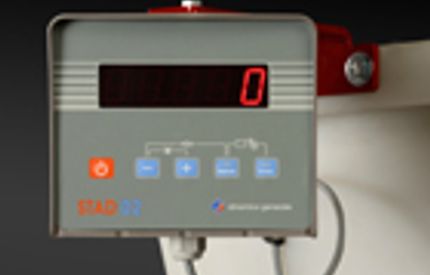

  • Scale system - DG STAD 02

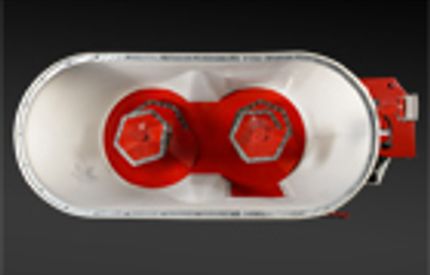

5100

  • Configurations - Trailer, self-propelled, stationary, truck mount
  • Capacity - 91 cubic feet, 2.58 cubic meters
  • Drum material - Polyethylene
  • Drum thickness - .43 in, 10.9 mm
  • Door width - 18 in, 45.7 cm
  • Frame - Galvanized steel

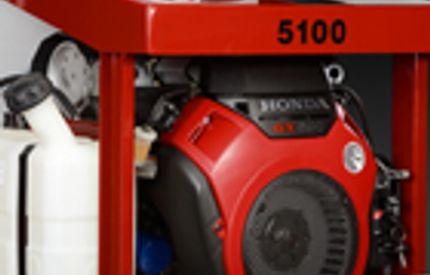

  • Standard drive - 22HP Honda gas engine
  • Scale system - DG STAD 02

5150

  • Configurations - Trailer, stationary
  • Capacity - 155 cubic feet, 4.4 cubic meters
  • Drum material - Steel
  • Drum thickness - .25 in, 64 cm
  • Door width - 25 in, 64 cm
  • Frame - Painted steel
  • Standard drive - Tractor PTO 35HP Min
  • Scale system - DG 500

5275

  • Configurations - Trailer, stationary
  • Capacity - 300 cubic feet, 8.5 cubic meters
  • Drum material - Steel
  • Drum thickness - .25 in, 6 mm
  • Door width - 25 in, 64 cm
  • Frame - Painted steel
  • Standard drive - Tractor PTO 45HP Min
  • Scale system - DG 500
